点击放大查看

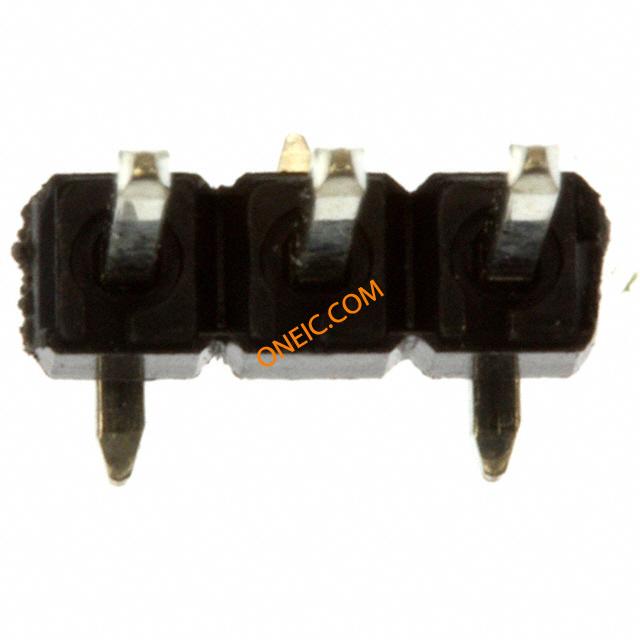

68301-1014
| 制造商 | Molex, LLC |
| 描述 | Headers & Wire Housings 2.54MM BREAKAWAY Vertical 3 CKT CONN HEADER 3POS .100" VERT TIN |
商业参数
| 标准包装数量 | 1 | ||
机械参数
| 颜色 | Black | 间距 | 0.100" (2.54mm) |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Surface Mount |
| 连接器类型 | Header, Unshrouded | 接触镀层 | Tin |
| 排数 | 1 | 位数 | 3 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 加载位置数 | All | ||
文档与媒体
相关型号
0022012035
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Cable Mount Bag CONN HSNG 3POS .100 W/RAMP/RIB
0022012037
molex
Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 3POS .100 W/RAMP
0022022035
molex
Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .100 VERT PCB

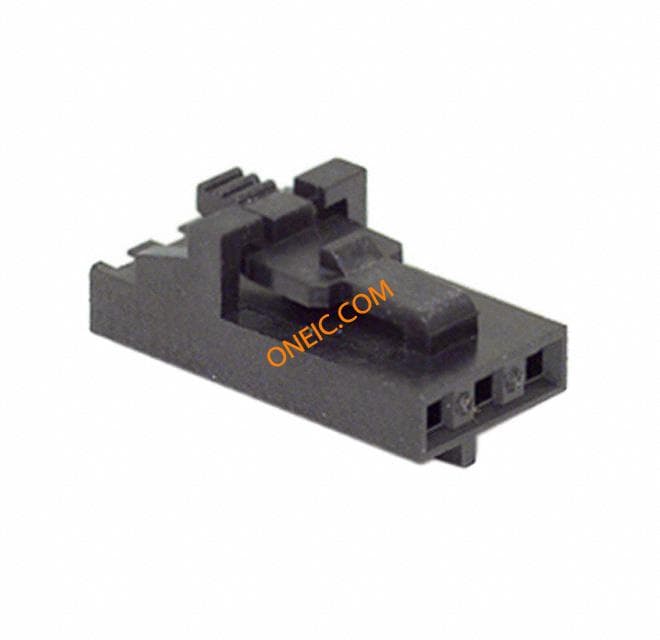

0050579403
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Panel Mount Bag CONN HOUSING 3POS .100 W/LATCH
0010112033
molex
Conn Housing RCP 3 POS 2.54mm Crimp ST Bag Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 3POS .100 HI PRESS

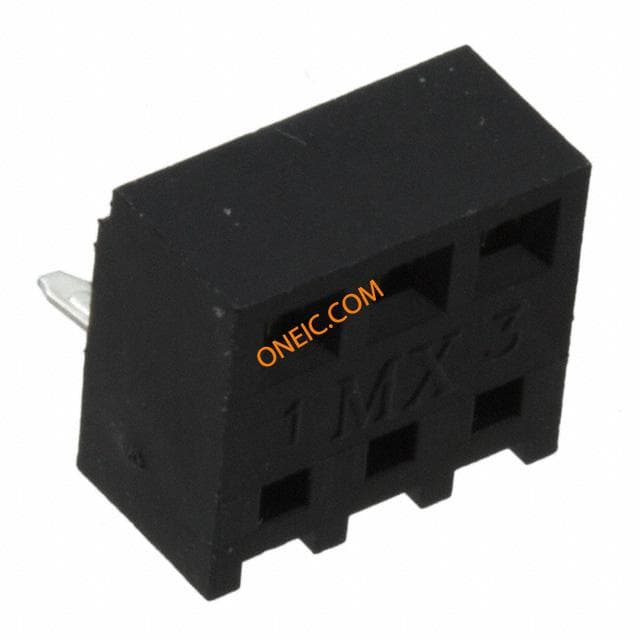

0448120003
Molex
Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray CONN RECEPT 3POS .100" TIN PCB
0022162030
Molex
Conn Socket Strip RCP 3 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 3POS .100 R/A PCB
22-18-2031
Molex Connector Corporation
CONN RECEPT 3POS .100 VERT PCB Headers & Wire Housings 2.54MM BOARD CONN Top Entry 3 CKT Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray

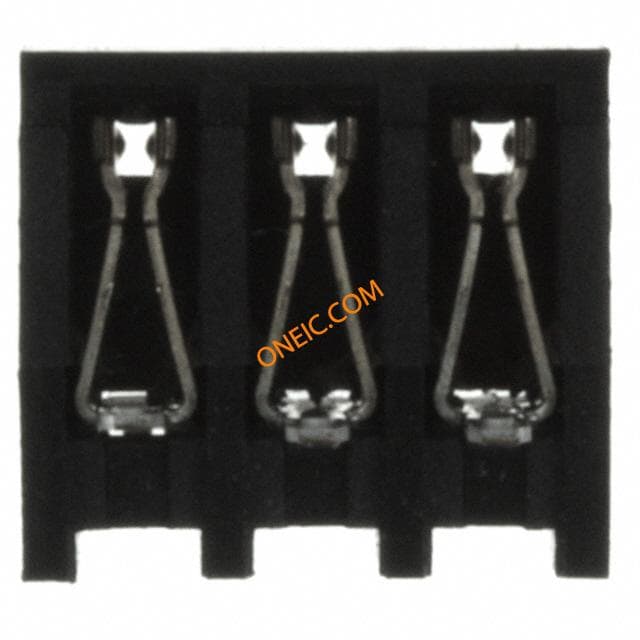

44812-0021
Molex Connector Corporation
CONN RECPT 3POS .100" 15GOLD PCB Headers & Wire Housings 2.54 Recept. 3 CKT Top/bottom Gold Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray

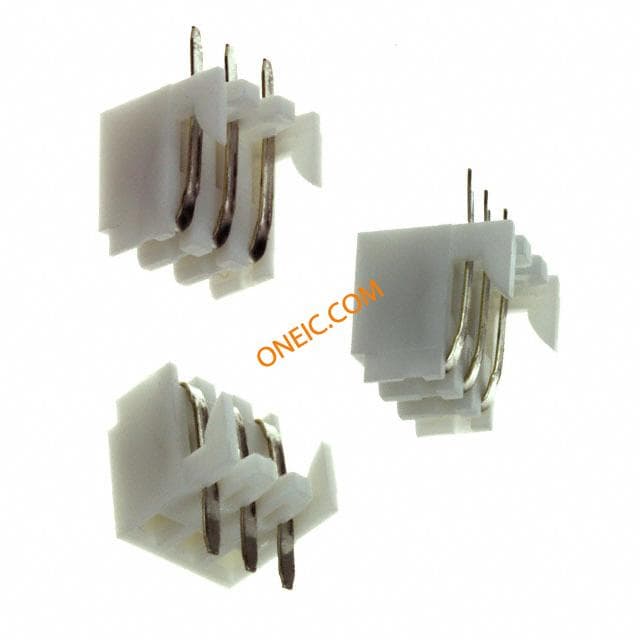

22-14-2034
Molex Connector Corporation
CONN RECEPT 3POS .100 VERT PCB Headers & Wire Housings PCB RECEPTACLE 3P BOTTOM ENTRY Conn Socket Strip RCP 3 POS 2.54mm Solder ST Thru-Hole Tray
22-01-2031
Molex Connector Corporation
CONN HOUSING 3POS .100 W/O RAMP 2.54mm,housing,KK 100,2695,w/o ramp,3w Headers & Wire Housings 3 CKT TERM HOUSING Conn Housing F 3 POS 2.54mm Crimp ST Cable Mount Bag Housing; Crimp; 0.100 in.; 3; White Nylon Molex KK 254 系列 1 行 2.54mm 节距 3 路 直 母 电缆安装 压接连接器外壳

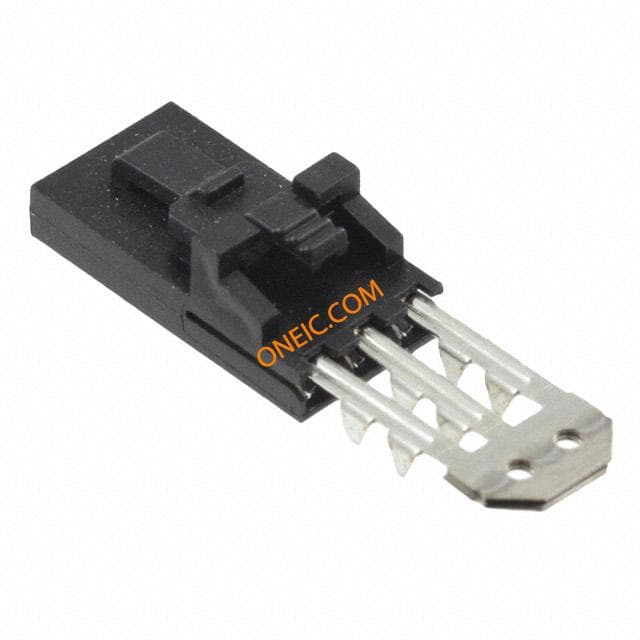

15-38-8030
