5025780400
| 制造商 | |
| 描述 | Conn Housing PL 4 POS 1.5mm Crimp ST Bag CONN PLUG HSG 4CKT BEIGE 1.5W/BSinglePlugHsg4CktBeige Plug; wire-board; female; PIN:4; w/o terminals; 1.5mm; for cable |
| 分类 |
商业参数
| 其他名称 | 502578-0400 | 标准包装数量 | 4,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 2/Contact A | 最小输入电压 | 100V |
| 最小供电电压 | 100V | 连接器类型 - 电压输入 | w/o terminals |
机械参数
| 颜色 | Beige | 深度 | 8.6 mm |
| 间距 | 0.059" (1.50mm) | 高度 | 6.1 mm |
| 重量 | 0.4 g | 包装方式 | Bag |
| 导线线规 | 24-30 | 触头类型 | Non-Gender Specific |
| 柱间距 | 1.5mm | 外壳颜色 | Beige |
| 安装类型 | Straight | 连接器类型 | Plug |
| 紧固类型 | Latch Lock | 安装样式 | for cable |
| 排数 | 1 | 锁定特性 | lock |
| 壳体材料 | Polybutylene Terephthalate | 总长度 | 10.3 mm |
| 包装数量 | 10 | 连接器 - 电缆 | plug |
| 触点数 | 4 | 接触件端接 | Crimp |
| 位数 | 4 | 第一连接器安装特征 | 1x4 |
产品信息
| SPG | 10 | 备注 | Contacts Not Provided |
| 类型 | Housing | 连接器性别 | PL |
| 适配器系列 | Clik-Mate | 单元数量 | 1 |
环境参数
| 工作温度 | -25C to 85C | ||
文档与媒体
相关型号

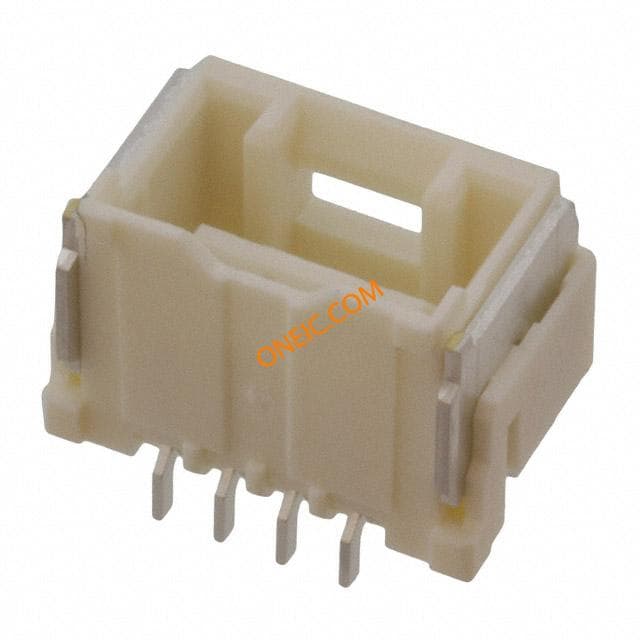

5025850470
Molex
Conn Wire to Board RCP 4 POS 1.5mm Solder RA SMD Embossed T/R CONN RCPT R/A SGL 4POS BEIGE 1.5W/BSglRARecAssy4CktEmbsTpPkg Socket; wire-board; male; PIN:4; 1.5mm; SMT; Clik-Mate; 2A; tinned
5031750400
Molex
Conn Wire to Board RCP 4 POS 1.5mm Solder RA Thru-Hole Tray CONN RCPT R/A 4CKT 1.5MM BEIGE 1.5W/BSGLDIPR/ARecAssy4CktW/BossBeige Socket; wire-board; male; PIN:4; 1.5mm; THT; PCB snap; Clik-Mate; 2A

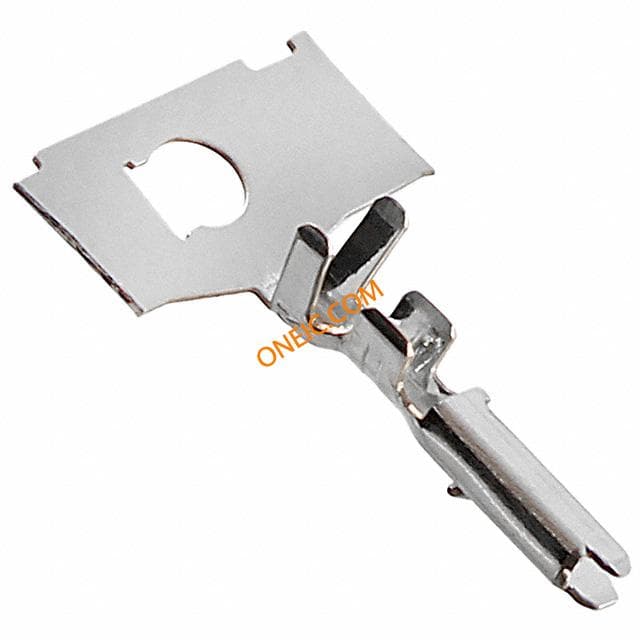

5025790000
