502382-0370
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board RCP 3 POS 1.25mm Solder ST SMD Embossed T/R Molex 1.25mm 3 Way 1 Row Straight PCB Socket Surface Mount Wire to Board Headers & Wire Housings 3P CLIKMATE RECPT VERTICAL TIN 1.25mm Pitch CLIK-Mate™ Wire-to-Board PCB Receptacle, Single Row, Vertical, 3 Circuits RECEPTACLE, 1.25MM, VERTICAL, 3WAY Molex CLIK-MATE 系列 3路 直 1.25mm节距 表面贴装 印刷电路板插座, 线对板 |
| 分类 |
商业参数
| 商标名 | CLIK-Mate | 产品类别 | Headers & Wire Housings |
| 工厂包装数量 | 1400 | ||
合规参数
| RoHS | Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | :UL94V-0 | ||
电气参数
| 量程（°/s） | :MOLEX - CLIK-Mate 502382 Series | 额定电压 | 50 V ac/dc |
| 接触电阻 | :20mohm | 击穿电压 | :500V |
| 最大额定电流 | 1A | 绝缘电阻 | :100Mohm |
机械参数
| 间距 | 1.25 mm | 重量 | 0.000211 |
| 材料（通用） | :Polybutylene Terephthalate | 包装方式 | Reel |
| 端接方式 | Solder | 引脚间距 | :1.25mm |
| 安装类型 | Straight | 接触镀层 | Tin Over Nickel |
| 安装样式 | Wire | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | Crimp | 第一触头极性 | Socket (Female) |
| 连接器颜色 | :White | 触点数 | 3 |
| 接触件端接 | :Surface Mount Vertical | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | 502382 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - PCB | ||
环境参数
| 工作温度 | :85°C | ||
文档与媒体
相关型号
63811-8200
molex
Connector Accessories Hand Crimp Tool Crimpers HAND CRIMP TOOL KK parallel action tool,0.1in pitch Hand Crimp Tool HAND CRIMP TOOL Hand Crimp Tool; use with 2.54mm KK Terminals 22-30AWG; Crimping plier, 63811-8200, Molex Molex HANDTOOL 系列 KK Crimp Terminals 压接工具 , 适用于22 → 30 AWG 线规格

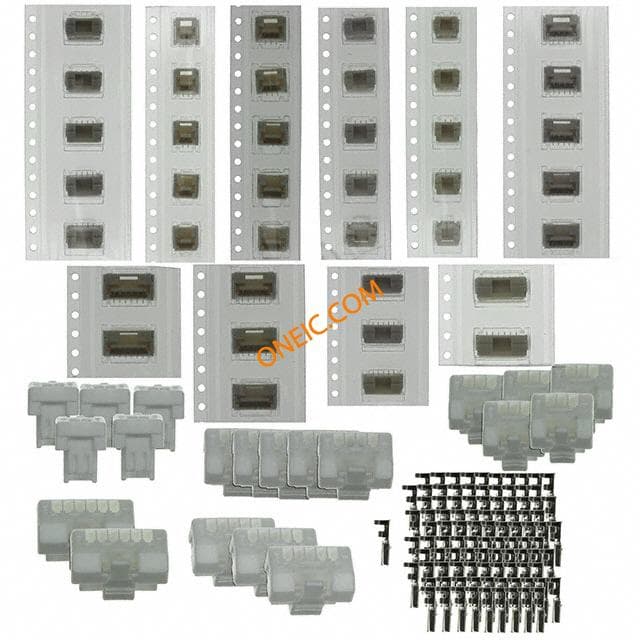

76650-0185
