501330-0800
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 8 POS 1mm Crimp ST Bag 8w single row crimp housing 1mm Headers & Wire Housings 1.0 WtB 8Ckt Female Housing Vert 1.00mm Pitch Pico-Clasp™ Wire-to-Board Female Housing, Single Row, with Positive Lock, 8 Circuits HOUSING, 1.0MM, PICO-CLASP, 8WAY Crimp Housing for Pitch1 mm Poles 1 x 8 Pico-Clasp™, 501330-0800, Molex Molex PICO-CLASP 系列 1mm 节距 8 路 直 母 压接连接器外壳 |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 商标名 | Pico-Clasp | 产品类别 | Headers & Wire Housings |
| 标准包装数量 | Bulk | 工厂包装数量 | 1000 |
合规参数
| RoHS | Compliant | SVHC | :No SVHC (20-Jun-2013) |
| 海关税号 | 85366930 | ||
电气参数
| 量程（°/s） | :MOLEX - Pico-Clasp 501330 Series | 最大额定电流 | 1 A |
机械参数
| 深度 | 5.5mm | 间距 | 1 mm |
| 宽度 | 4.76mm | 长度 | 9.7mm |
| 重量 | 0.05 | 安装类型 | Straight |
| 接触镀层 | :- | 安装样式 | Wire |
| 排数 | 1 | 触头材料 | :- |
| 壳体材料 | Nylon | 端接样式 | Crimp |
| 第一触头极性 | Socket (Female) | 触点数 | 8 |
| 接触件端接 | :Crimp | ||
产品信息
| 类型 | Housing | 连接器性别 | RCP |
| 系列 | 501330 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Receptacles / Sockets - Housings | 适用产品/相关产品 | Pico-Clasp Wire-to-Board Connector |
文档与媒体
PDF 文档
相关型号
501334-0100
molex
Contact SKT Crimp ST Cable Mount Bag Headers & Wire Housings 1.0 WtB Crimp Term 28-32 AWG Loose TERMINAL, PICO-CLASP, 28-32AWG CONTACT, FEMALE, 32-28AWG, CRIMP Crimp socket 1 A Female 32...28 AWG, 501334-0100, Molex Molex PICO-CLASP 系列 母 压接触点, 压接或压缩, 镀锡触点
¥0.1972
详情

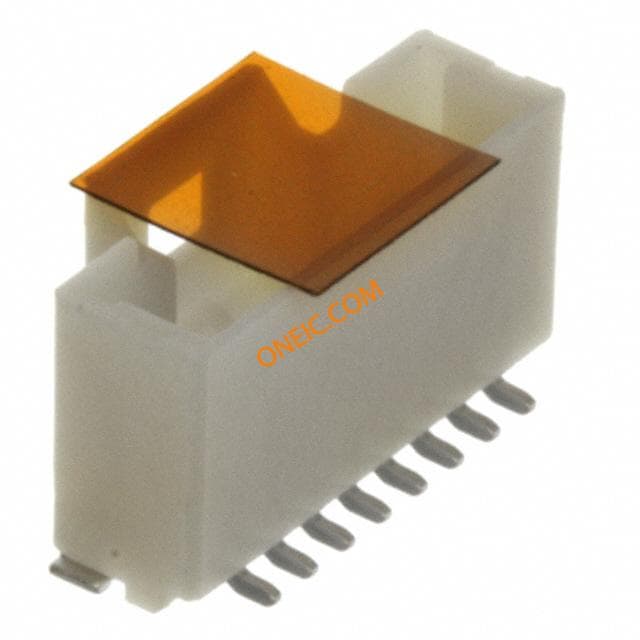

501331-0807
