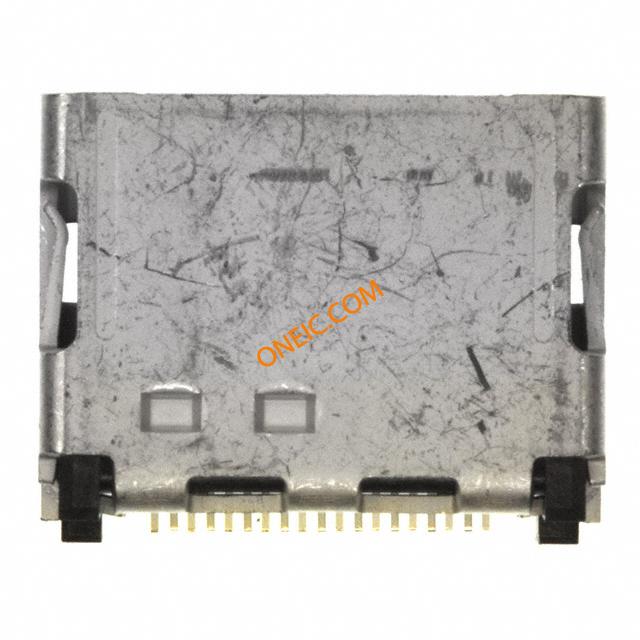

5002541927

制造商	Molex, LLC
描述	HDMI RCPT RIGHT ANGLE ( LEAD FREE ) CONN RCPT 19POS HDMI RT ANG SMD HEADER, RIGHT ANGLE, STANDARD TYPE
分类	连接器解决方案USB、DVI、HDMI连接器USB连接器与控制器

对参数有疑问？问 AI 助手

商业参数

其他名称

WM19084CT

标准包装数量

500

合规参数

RoHS

Lead free / RoHS Compliant

海关税号

85369010

机械参数

间距	:0.5mm	重量	0.005
包装方式	Tape & Reel (TR)	方向	angled 90°
安装类型	Surface Mount, Right Angle, Horizontal	连接器类型	HDMI
接触镀层	:Gold	安装样式	SMT
本体材料	:Metal	材料表面处理	tinned
连接器 - 电缆	socket	触点数	19
接触件端接	:Surface Mount Right Angle	位数	19
触点材料 - 镀层	gold plated	第一连接器安装类型	:PCB

产品信息

连接器性别	Receptacle	系列	:-
产品特性	Shielded

文档与媒体

PDF 文档

500254-1927 8/Feb/2013

PDF 文档

500254 Product Specification
