点击放大查看

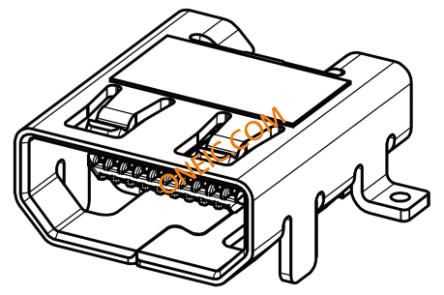

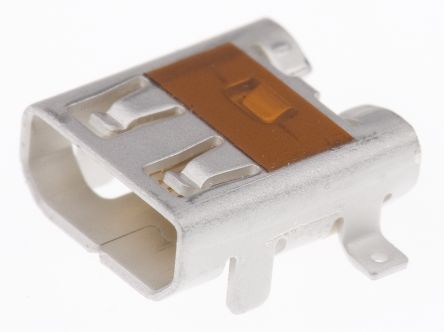

46765-2001
| 制造商 | |
| 描述 | Conn Micro HDMI RCP 19 POS 0.4mm Solder RA SMD 19 Terminal 1 Port Embossed T/R Type D 19 Way Female Right Angle HDMI Connector 30V HDMI, Displayport & DVI Connectors Micro HDMI Recpt RA SMT HYBRID TABS CONNECTOR, HDMI, RCPT, 19POS 19路 D 型 HDMI 直角 母, 30 V |
| 分类 |
商业参数
| 零件号别名 | 0467652001 | 产品类别 | HDMI, Displayport & DVI Connectors |
| 标准包装数量 | Tape & Reel | 工厂包装数量 | 4000 |
合规参数
| RoHS | Compliant | 海关税号 | 85366930 |
电气参数
| 额定电压 | 30 V | 最大额定电流 | 0.8A |
| 触点额定值 @ 电压 | 0.8 A | ||
机械参数
| 尺寸 | Type D | 重量 | 0 |
| 包装方式 | Reel | 方向 | Right Angle |
| 端接方式 | Solder | 安装类型 | Right Angle |
| 连接器类型 | :Micro HDMI | 接触镀层 | Gold |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 端接样式 | SMD | 触点数 | 19 |
| 接触件端接 | :Surface Mount Right Angle | 第一连接器安装类型 | :PCB |
产品信息
| 连接器性别 | Female | 系列 | 46765 |
| 产品子类型 | Micro-HDMI | ||
环境参数
| 工作温度 | +85°C | ||
文档与媒体
相关型号
68786-0001
molex
Cable Assembly D-Sub 1m 34AWG 19 POS HDMI to 19 POS HDMI M-M Cable Assemblies HDMI Cbl Assbly 1M Micro to STD 37 Way Male to Male Straight HDMI Video Cable Assembly 30V HDMI Cables HDMI Cbl Assbly 1M Micro to STD CABLE ASSY, HDMI-D M, HDMI-A M, 1M MICRO HDMI CABLE ASSEMBLY 高清视频电缆组件 微型 HDMI
68786-0003
molex
Cable Assembly D-Sub 2m 34AWG 19 POS HDMI to 19 POS HDMI M-M Cable Assemblies HDMI Cbl Assbly 2M Micro to STD 37 Way Male to Male Straight HDMI Video Cable Assembly 30V HDMI Cables HDMI Cbl Assbly 2M Micro to STD Micro HDMI*-to-HDMI* Cable Assembly, CAT 2, AWG 32, 2.0m, Lead-Free CABLE ASSY, HDMI-D M, HDMI-A M, 2M Molex 高清视频电缆组件 , 微型 HDMI
68786-0002
molex
Cable Assembly D-Sub 1.5m 34AWG 19 POS HDMI to 19 POS HDMI M-M Cable Assemblies HDMI Cbl Assbly 1.5M Micro to STD 37 Way Male to Male Straight HDMI Video Cable Assembly 30V HDMI Cables HDMI Cbl Assbly 1.5M Micro to STD Molex 高清视频电缆组件 , 微型 HDMI

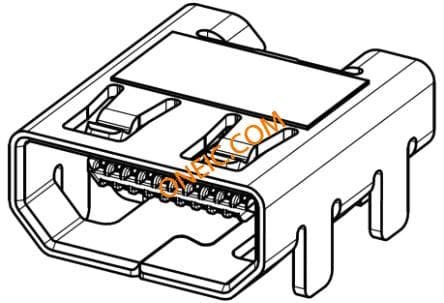

46765-1001
