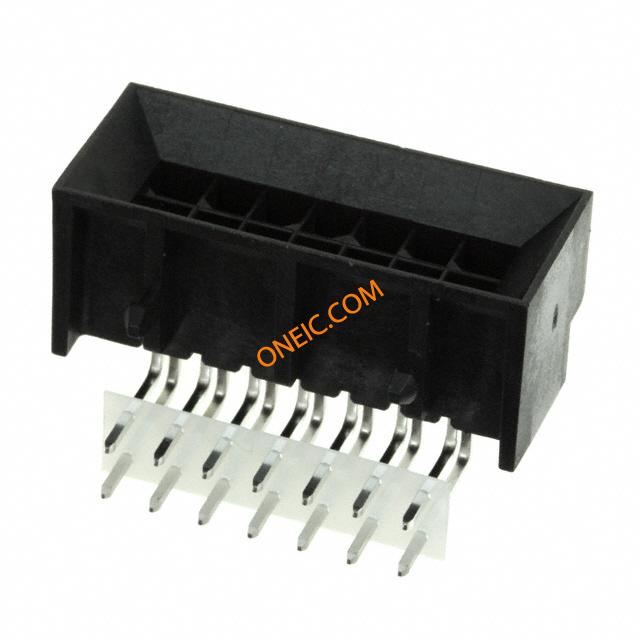

44428-1402
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 14 POS 3mm Solder RA Thru-Hole Tray CONN HEADER 14POS 3MM R/A GOLD Headers & Wire Housings R.A. RECPT 14P gold w/snap-in pegs |
| 分类 |
商业参数
| 商标名 | Micro-Fit 3.0 | 零件号别名 | 0444281402 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 462 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 5 A |
机械参数
| 颜色 | Black | 间距 | 0.118" (3.00mm) |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole, Right Angle | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Thermoplastic |
| 端接样式 | Through Hole | 触点数 | 14 |
| 位数 | 14 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Pin Header | 系列 | 44428 |
| 产品特性 | Board Lock | 产品子类型 | Header Assemblies |
| 加载位置数 | All | ||
相关型号
0447691403
molex
Conn Wire to Board RCP 14 POS 3mm Solder ST Thru-Hole Tray MICRO-FIT BMI VT HDR F DR 30AU

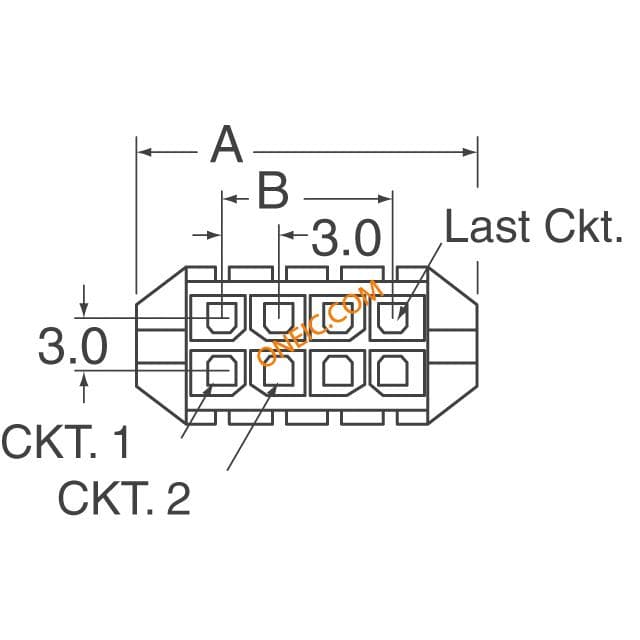

44769-1401
molex
Conn Wire to Board RCP 14 POS 3mm Solder ST Thru-Hole Tray CONN HDR RCPT 14POS VERT TIN PCB Headers & Wire Housings VERT RECPT 14P tin w/friction pegs
0441331400
Molex, LLC
. 0441331400 - 14 Position Rectangular Housing Connector Receptacle Black 0.118" (3.00mm) from Molex. from now!
0447641403
Molex, LLC
. 0447641403 - 14 Position Receptacle Connector 0.118" (3.00mm) Through Hole, Right Angle Gold from Molex. from now!

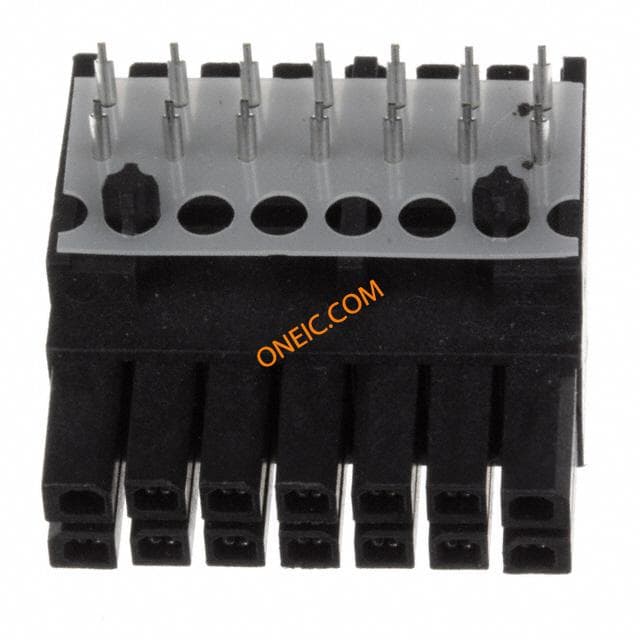

44764-1401
Molex Connector Corporation
CONN HEADER 14POS 3MM R/A TIN Headers & Wire Housings R.A. RECPT 14P tin w/friction pegs Conn Wire to Board RCP 14 POS 3mm Solder RA Thru-Hole Tray

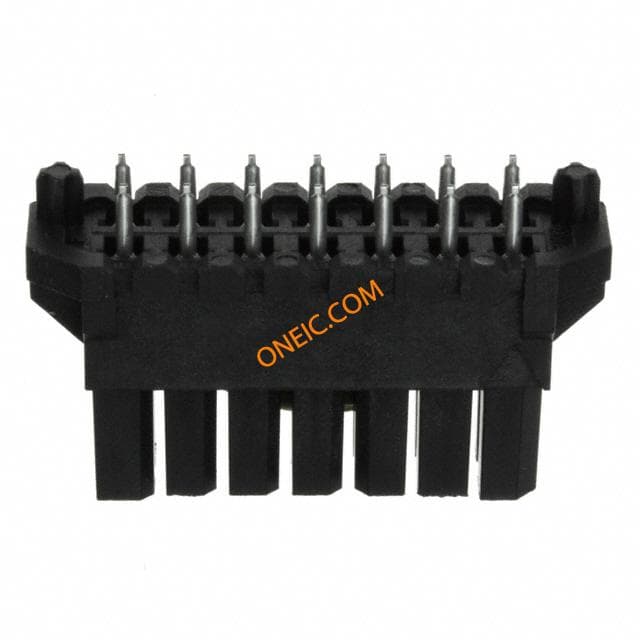

44769-1402
Molex Connector Corporation
CONN HDR RCPT 14POS 3MM VERT PCB Headers & Wire Housings VERT RECPT 14P gold w/friction pegs Conn Wire to Board RCP 14 POS 3mm Solder ST Thru-Hole Tray

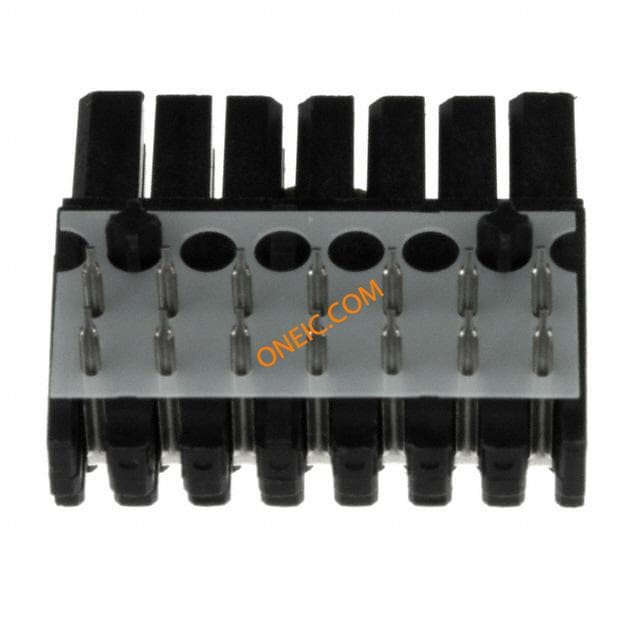

44764-1402
