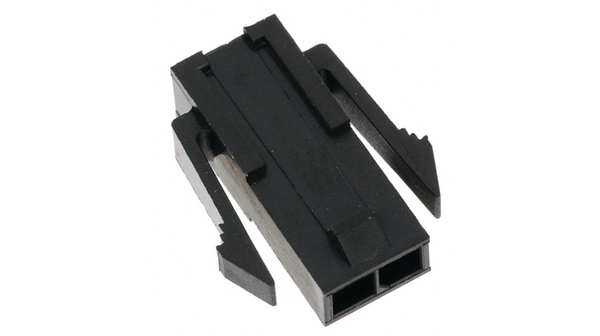

43640-0200

制造商	Molex, LLC
描述	2 way 1 row panel mount plug,3mm pitch Headers & Wire Housings PLUG PANEL MOUNT 2P SINGLE ROW Conn Housing M 2 POS 3mm Crimp ST Cable Mount Bag HOUSING, PLUG, 3MM, 2 WAY, POLYESTER MicroFit 3.0 Plug SR Pnl Mnt 2Ckt Male contact housing single row Pitch3 mm Poles 1 x 2 Micro-Fit, 43640-0200, Molex Molex MICRO-FIT 3.0 系列 1 行 3mm 节距 2 路直公电缆安装压接连接器外壳
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

商标名	Micro-Fit 3.0	零件号别名	0436400200
产品类别	Headers & Wire Housings	工厂包装数量	2500

合规参数

RoHS	RoHS Compliant	海关税号	85369010
材料阻燃等级	:UL94V-0

电气参数

最大额定电流

2.5 A

连接器类型 - 电压输入

Male

机械参数

深度	24.53mm	间距	3mm
重量	0.056	安装类型	Straight
安装样式	Panel	排数	1
本体材料	:Polyester	壳体材料	PET
触点数	2	位数	:2

产品信息

类型	Plug Housing	连接器性别	Male
系列	43640	CAD图纸	3D CAD Model
产品子类型	Wire Housings	应用细节	Power, Wire-to-Wire
适用产品/相关产品	Micro-Fit 3.0 Plug

文档与媒体

PDF 文档

0436400200_CRIMP_HOUSINGS.pdf
