点击放大查看

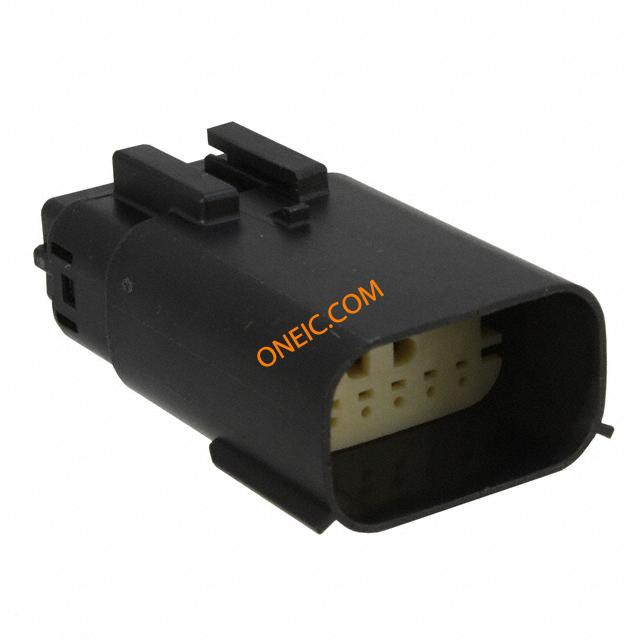

33482-1201

制造商	Molex, LLC
描述	Automotive Connectors MX150 2X6P MALE PLG POLAR A W/O CPA CONN PLUG 12POS DUAL BLACK 3.50mm Pitch MX150™ Sealed Male Connector, Dual Row, 12 Circuits, Polarization A, without Connector Position Assurance, Black RECTANGULAR POWER HOUSING, PLUG, CABLE Molex MX150 系列 2行 12路电线安装黑色公外壳 , 压接端接
分类	连接器解决方案矩形连接器电源混合矩形连接器

对参数有疑问？问 AI 助手

商业参数

产品	Housings	商标名	MX150
零件号别名	0334821201	产品类别	Automotive Connectors
标准包装数量	1	工厂包装数量	400

合规参数

RoHS

RoHS Compliant

海关税号

85366990

电气参数

最大额定电流

22 A

机械参数

颜色	Black	间距	0.138" (3.50mm)
重量	0.02	包装方式	Bulk
触头类型	Male Pin	安装类型	Free Hanging (In-Line)
连接器类型	Plug	紧固类型	Locking Ramp
安装样式	Free Hanging	排数	2
锁定特性	:-	本体材料	:Polystyrene (PS)
壳体材料	Polystyrene (PS)	端接样式	Crimp
接触件端接	Crimp	位数	12
外壳尺寸-插件	:-	第一连接器安装类型	:Cable

产品信息

备注	Contacts Not Provided	连接器性别	Male
系列	33482	产品特性	Sealed
适用产品/相关产品	:33000 MX150, 33011 Male Terminals, 34345-0001 MLX 150 Cavity Plug Sealed Housings

环境参数

工作温度

- 40 C to + 125 C

文档与媒体

PDF 文档

33482-121

PDF 文档

0334821201_CRIMP_HOUSINGS.pdf
