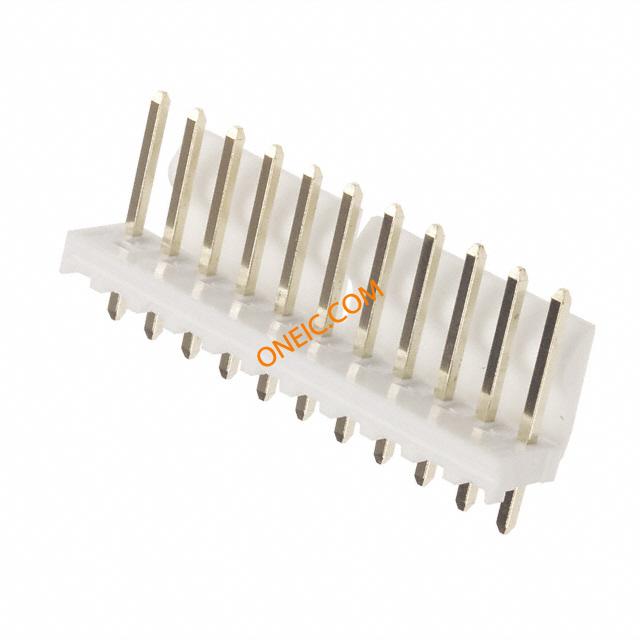

点击放大查看
26-60-4110
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 11 POS 3.96mm Solder ST Thru-Hole Bag CONN HEADER 11POS .156 VERT TIN Molex 41791 Series 3.96mm Pitch 11 Way 1 Row Straight PCB Header, Solder Termination, 7A Headers & Wire Housings VERT PCB HDR 11P TIN FRICTION LOCK Molex KK 396 系列 3.96mm节距 11路 (1排) 直 PCB 针座, 焊接端接, 7A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0026604110 41791-0011 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 150 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 7A |
机械参数
| 颜色 | Natural | 间距 | 3.96 mm |
| 包装方式 | Bulk | 方向 | 直 |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Polyester | 端接排数 | 焊接 |
| 端接样式 | Through Hole | 触点数 | 11 |
| 位数 | 11 | 接触长度 - 配合 | 0.450" (11.43mm) |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 41791 | 覆盖范围 | 无覆盖 |
| CAD图纸 | 3D CAD Model | 产品子类型 | Headers |
| 基础产品编号 | 41791 | 加载位置数 | All |
