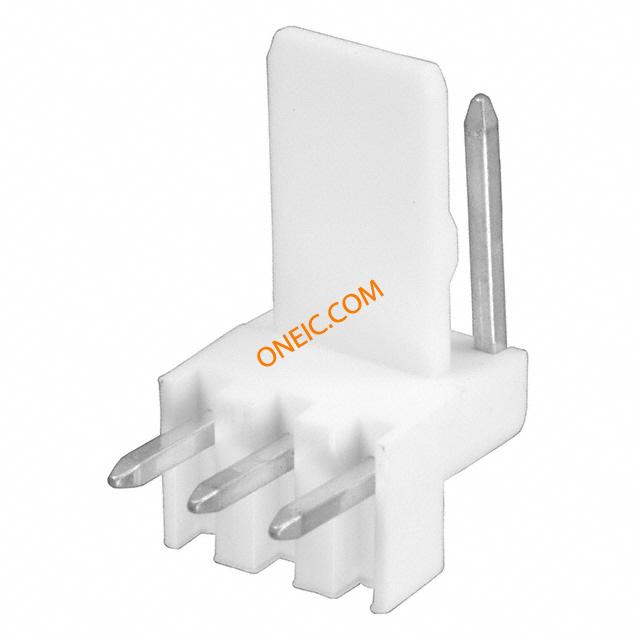

22-05-1032
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 3 POS 2.5mm Solder RA Thru-Hole Bag CONN HEADER 3POS 2.5MM R/A TIN Molex 5046 Series 2.5mm Pitch 3 Way 1 Row Right Angle PCB Header, Solder Termination, 3A Headers & Wire Housings RA FRICTION LK HDR 3 wire-to-board HEADER, R/A, SQ PIN, 2.5MM, 3WAY Molex Mini-Latch 系列 2.5mm节距 3路 (1排) 直角 PCB 针座, 焊接端接, 3A , 通孔 |
| 分类 |
商业参数
| 商标名 | KK | 零件号别名 | 0022051032 5046-03A |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Bulk |
| 工厂包装数量 | 3500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85369010 |
电气参数
| 量程（°/s） | :MOLEX - 5046 Series | 额定电压 | 250 V ac/dc |
| 工作电压 | :250V | 接触电阻 | :20mohm |
| 介电强度 | :1500V/m | 最大额定电流 | 3A |
机械参数
| 颜色 | Natural | 间距 | 2.5 mm |
| 重量 | 0.0035 | 包装方式 | Bulk |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 引脚间距 | :2.5mm | 安装类型 | Through Hole, Right Angle |
| 释放力 | :0.5N | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Friction Lock |
| 排数 | 1 | 封装形式 | :White Nylon UL94V-0 |
| 插入力 | :2N | 触头材料 | Brass |
| 壳体材料 | Polyamide (PA) | 端接样式 | Through Hole |
| 触点数 | 3 | 接触件端接 | :Through Hole Right Angle |
| 位数 | 3 | 安装孔直径 | :1.19mm |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 200µin (5.08µm) |
| 第一连接器安装类型 | :Right Angle | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 系列 | 5046 | CAD图纸 | 3D CAD Model |
| 产品子类型 | Headers | 加载位置数 | All |
环境参数
| 工作温度 | :105°C | ||
相关型号
22-01-1034
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Cable Mount Bag
22-01-1023
Molex
Headers & Wire Housings 2.5 KK HSG FEMALE 2P friction lock
76650-0226
molex

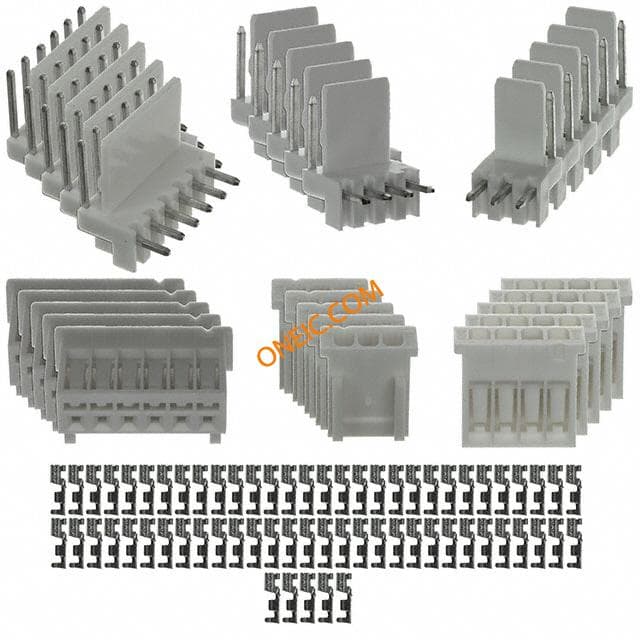

COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE SIZE KIT MINI-LATCH 2.50MM RA WTB Headers & Wire Housings MINILATCH KIT R/A HDR COMPONENT KITS, WIRE TO BOARD KIT 3,4,6POS 1.5-3A THROUGH HOLE MOUNTING RECEPTACLE, RIGHT ANGLE HEADER 2.5MM PITCH 250V 22-28 WIRE ... Kit Description:Friction Lock Right Angle Header and ReceptacleKit Category:Wire to BoardSolution:Off the BoardPackaging:Clamshell: 9" by 4"Num. Pieces:95 MINI-LATCH CONNECTOR KIT FRICTION LOCK RT ANGLE HEADER & RECEPT
