19419-0012
| 制造商 | |

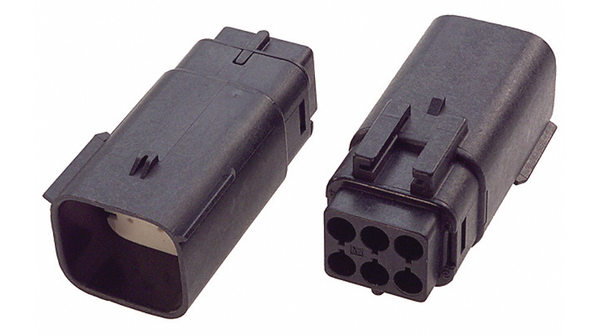

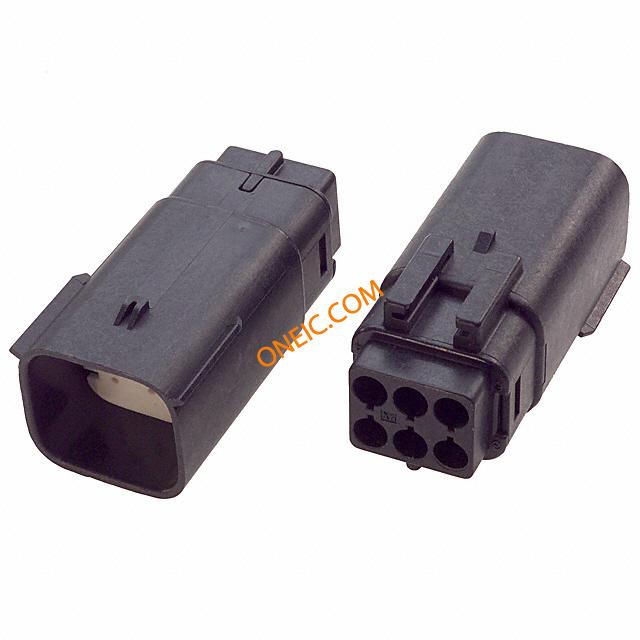

| 描述 | Automotive Connectors PLUG 6P 22-18 AWG dual row CONN PLUG 6POS 18-22AWG DUAL 6 way 18-22AWG IP67 plug connector 6 WAY PLUG ASSY 22-18 AWG Cable plug Pitch5.84 mm Poles 6 MX150L™, 19419-0012, Molex Molex MX150L 系列 2 行 5.84mm 节距 6 路 直 公 压接连接器外壳 |
| 分类 |
商业参数
| 产品 | Housings | 商标名 | MX150L |
| 零件号别名 | 0194190012 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 240 |
合规参数
| RoHS | Compliant | 材料阻燃等级 | UL 94 V-0 |
电气参数
| 额定电压 | 600 | 极数 | 6 |
| 最大额定电流 | 18 A | 连接器类型 - 电压输入 | Crimp |
| 保护电压（VP）（2416） | IP 67 | ||
机械参数

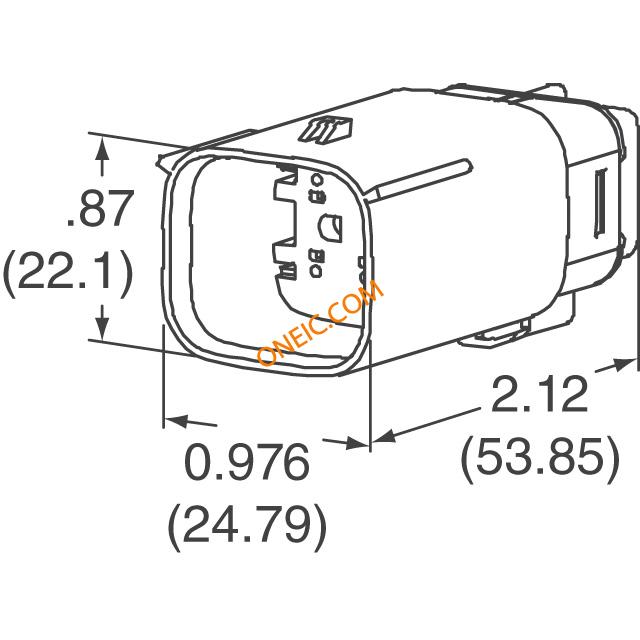

| 深度 | 53.96mm | 间距 | 0.230" (5.84mm) |
| 长度 | 24.78mm | 包装方式 | Bulk |
| 方向 | 直 | 触点形式 | Male Pin |
| 触头类型 | Male Pin | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Plug | 紧固类型 | Locking Ramp |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Polybutylene Terephthalate (PBT) | 端接样式 | Crimp |
| 触点数 | 6 | 接触件端接 | Crimp |
| 位数 | 6 | 线规或范围 - AWG | 22...18 AWG |
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Male |
| 系列 | 19419 | 产品特性 | IP67 |
| CAD图纸 | 3D CAD Model | 主要用途 | IP67 |
| 连接方式 | Wire-Wire | 基础产品编号 | 19419 |
| 输出配置 | Free Hanging (In-Line) | 适用产品/相关产品 | MX150L 6 Circuit Plug |
环境参数
| 工作温度 | - 40 C to + 125 C | ||
