点击放大查看

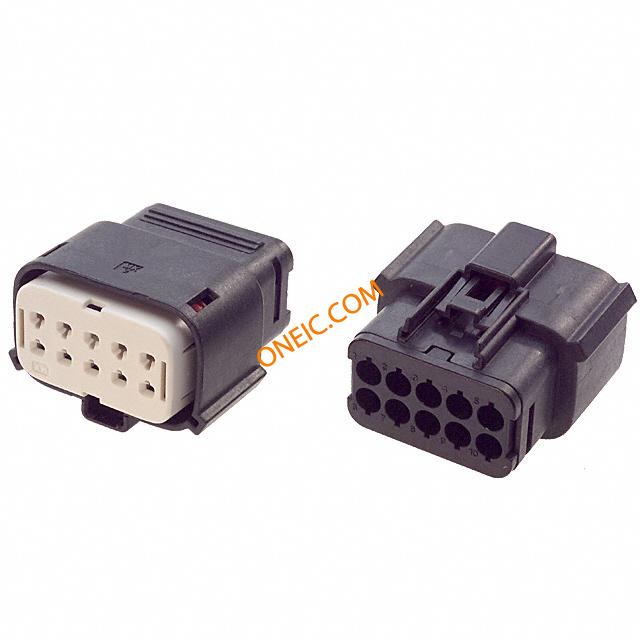

19418-0024
| 制造商 | |
| 描述 | Automotive Connectors RECPT 10P 22-18 AWG dual row CONN RECEPT 10POS 18-22AWG DUAL CONNECTOR HOUSING, RECEPTACLE, 10POS, 22-18AWG |
| 分类 |
商业参数
| 产品 | Housings | 商标名 | MX150L |
| 零件号别名 | 0194180024 | 产品类别 | Automotive Connectors |
| 标准包装数量 | 10 | 工厂包装数量 | 168 |
合规参数
| RoHS | RoHS Compliant | 海关税号 | 85369010 |
| 材料阻燃等级 | UL 94 V-0 | ||
电气参数
| 最大额定电流 | 18 A | ||
机械参数
| 颜色 | Natural | 间距 | 0.230" (5.84mm) |
| 重量 | 0 | 包装方式 | Bulk |
| 排间距 | 0.236" (6.00mm) | 触头类型 | Female Socket |
| 安装类型 | Free Hanging (In-Line) | 连接器类型 | Receptacle |
| 接触镀层 | Tin | 紧固类型 | Latch Holder |
| 安装样式 | Wire | 排数 | 2 |
| 壳体材料 | Polystyrene (PS) | 端接样式 | Crimp |
| 触点数 | :10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 连接器性别 | Female |
| 系列 | 19418 | 产品特性 | IP67 |
| 适用产品/相关产品 | :19420 Female Crimp Terminal | ||
环境参数
| 工作温度 | - 40 C to + 125 C | ||
文档与媒体
相关型号
0194351011
Molex, LLC
. 0194351011 - 10 Position Rectangular Housing Connector Plug Black 0.230" (5.84mm) from Molex. from now!
0194200002
Molex, LLC
. 0194200002 - Socket Contact Tin 18-22 AWG Crimp from Molex. from now!
0194351014
molex
Conn Housing PL 10 POS 5.84mm Crimp ST Bag CONN PLUG 10POS 22-18AWG
0194351013
molex
Conn Housing PL 10 POS 5.84mm Crimp ST Bag CONN PLUG 10POS 14-16AWG

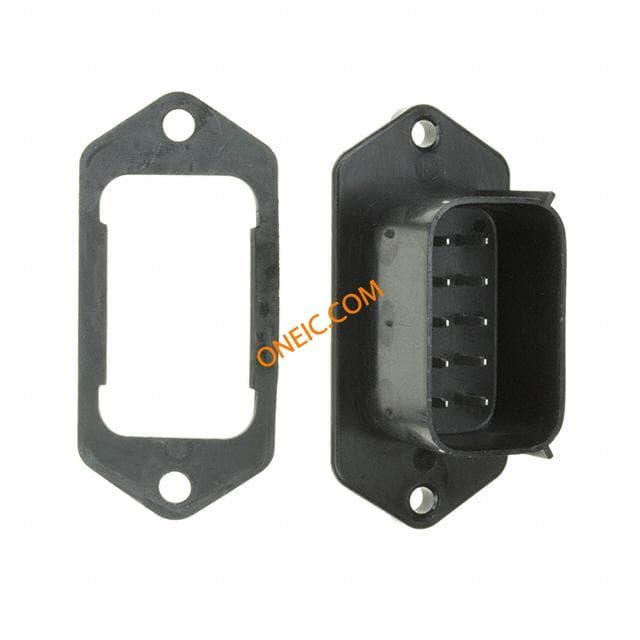

19428-0014
Molex
Automotive Connectors 10 Ckt Vert. Header low profile CONN HEADER 10POS VERTIAL TIN Molex 19428 Series 5.84mm Pitch 10 Way 2 Row Straight PCB Header, Solder Termination, 18A Molex MX150L 系列 5.84mm节距 10路 (2排) 直 PCB 针座, 焊接端接, 18A , 通孔
19420-0010
Molex
Automotive Connectors SOCKET 22-18 AWG CONN TERM FEMALE 18-22AWG TIN 18-22AWG female terminal FEM TERMINAL TIN PLTD 22-18 L.P. MX150L Crimp contact Female 22...18 AWG, 19420-0010, Molex Molex MX150L 系列 母 压接接线端子, 压接, 镀锡镀镍触点
19419-0014
Molex
Automotive Connectors PLUG 10P 16-14 AWG dual row CONN PLUG 10POS 14-16AWG DUAL 10 way 14-16AWG IP67 plug connector Molex MX150L 系列 2 行 5.84mm 节距 10 路 直 公 压接连接器外壳
19419-0015
Molex
Automotive Connectors PLUG 10P 22-18 AWG dual row CONN PLUG 10POS 18-22AWG DUAL 10 way 18-22AWG IP67 plug connector CONNECTOR HOUSING, PLUG, 10POS, 22-18AWG Molex MX150L 系列 2 行 5.84mm 节距 10 路 直 公 压接连接器外壳

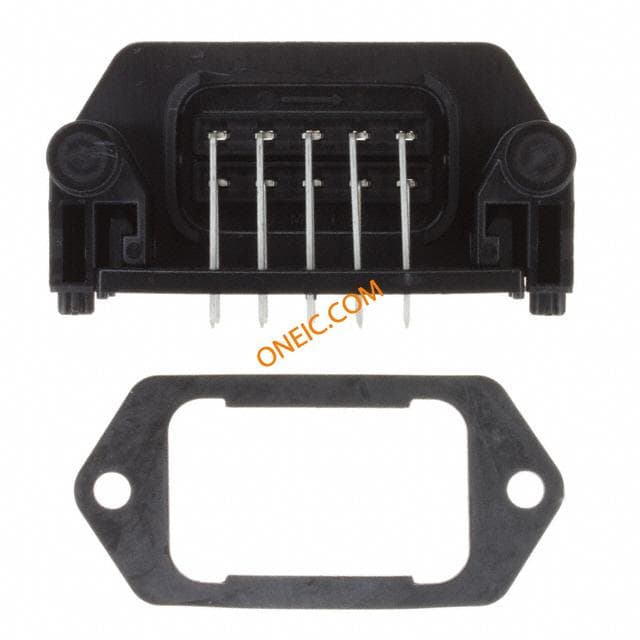

19427-0031
