15-47-4110
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector SKT 11 POS 2.54mm IDT ST Cable Mount Tube CONN FFC FEMALE 11POS .100 GOLD FFC & FPC Connectors SL FFC/FPC Opt A Fem 15 SAu 11Ckt |
| 分类 |
商业参数
| 商标名 | C-Grid | 零件号别名 | 0015474110 70430-0185 |
| 产品类别 | FFC & FPC Connectors | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 570 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 材料阻燃等级 | UL94 V-0 |
电气参数
| 额定电压 | 250V | 最大额定电流 | 1 A, 2 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 端接方式 | IDT |
| 安装类型 | Vertical | 连接器类型 | Receptacle |
| 接触镀层 | Gold | 安装样式 | Cable |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester, Glass Filled | 端接样式 | IDC |
| FFC/FCB厚度 | 0.30mm | 触点数 | 11 |
| 位数 | 11 | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | SKT |
| 系列 | 70430 | 产品子类型 | Free Hanging |
环境参数
| 工作温度 | -40°C ~ 105°C | ||
文档与媒体
相关型号
0022284114
molex
Conn Unshrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 11POS .100 VERT GOLD
0022288112
molex
Conn Unshrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 11POS .100 R/A GOLD
0622020800
molex
FFC/SL TOOLING 2-20 CKT W/ TM42 PRESS TM-42 PRESS AND TERMINATION KIT FOR 110V APPLICATIONS FFC/SL TOOL 2-20 CKT W/ TM42
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF

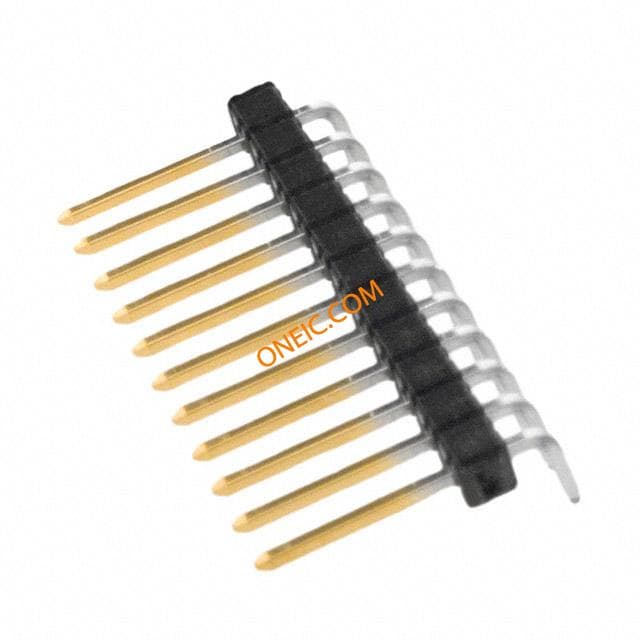

0022288113
molex
Conn Unshrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 11POS .100 R/A GOLD

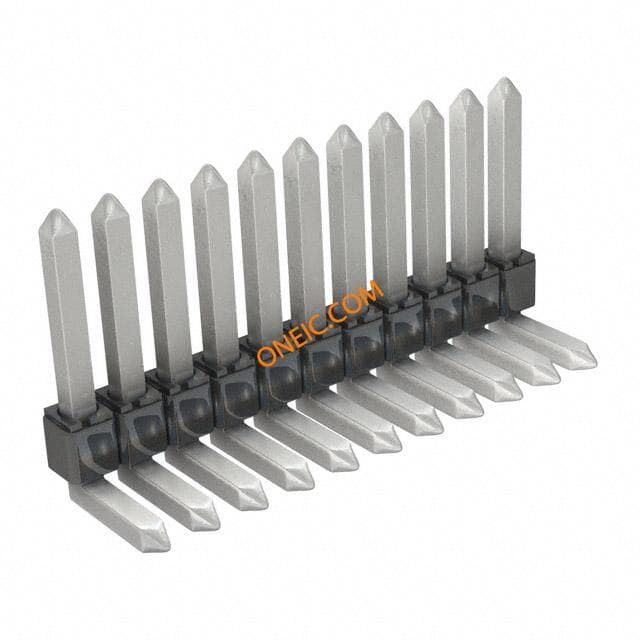

0022288111
Molex
Conn Unshrouded Header HDR 11 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 11POS .100 R/A TIN
22-28-4112
Molex Connector Corporation
CONN HEADER 11POS .100 VERT TIN Headers & Wire Housings 11CKT BRKWY HDR VERT Conn Unshrouded Header HDR 11 POS 2.54mm Solder ST Thru-Hole Bag
22-28-4116
Molex Connector Corporation
CONN HEADER 11POS .100 VERT GOLD
22-28-4118
Molex Connector Corporation
CONN HEADER 11POS .100 VERT GOLD Headers & Wire Housings KK 100 Hdr Assy Bkwy Bkwy 11 Ckt 30 SGold
22-28-4115
Molex Connector Corporation
CONN HEADER 11POS .100 VERT GOLD
22-28-8114
Molex Connector Corporation
CONN HEADER 11POS .100 R/A GOLD Headers & Wire Housings HEADER 11POS .100 R/A GOLD
22-28-8115
Molex Connector Corporation
CONN HEADER 11POS .100 R/A GOLD Headers & Wire Housings HEADER 11POS .100 R/A GOLD
0022288110
Molex Inc
CONN HEADER 11POS .100 R/A TIN
22-28-4117
Molex Connector Corporation
CONN HEADER 11POS .100 VERT GOLD Headers & Wire Housings KK 100 Hdr Assy Bkwy Bkwy 11 Ckt 30 SGold
0022284111
Molex Inc
CONN HEADER 11POS .100 VERT TIN

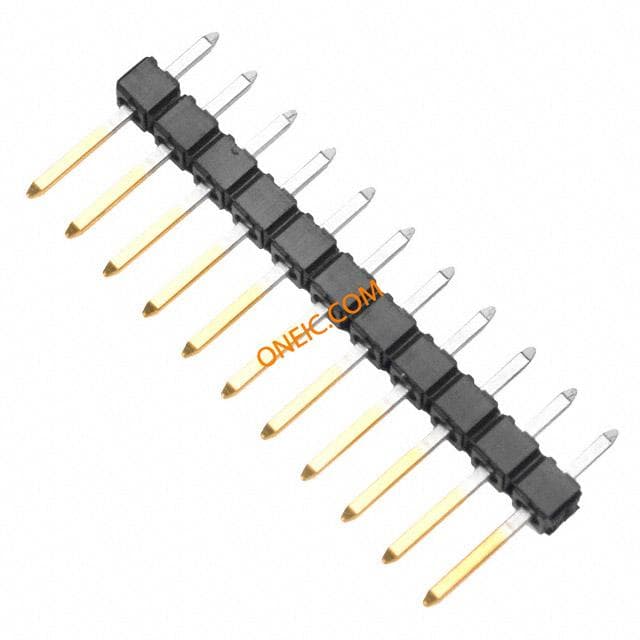

0022284113
