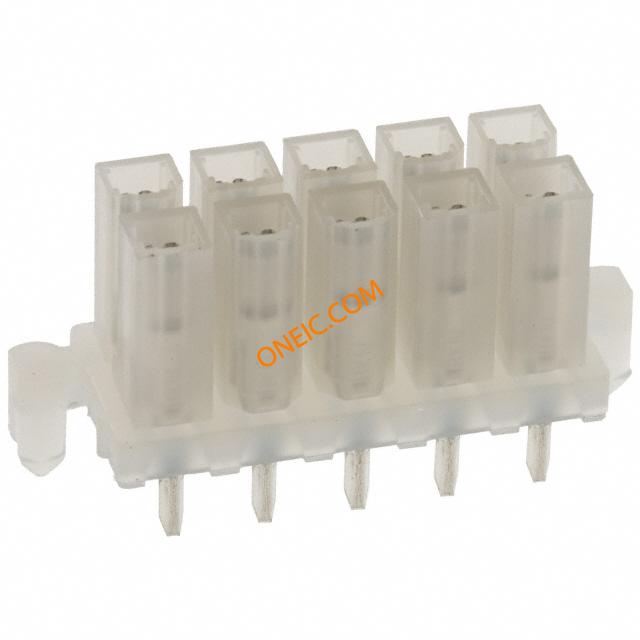

15-24-7100
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board RCP 10 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 10POS 4.2MM VERT TIN Headers & Wire Housings RECPT VERT HDR 10P DUAL ROW Conn Power RCP 10 POS 4.2mm Solder ST Thru-Hole 10 Terminal 1 Port Tray PLUG & SOCKET CONNECTOR, RCPT 6POS 4.2MM MINI FIT BMI REC HEADER |
| 分类 |
商业参数
| 商标名 | Mini-Fit BMI | 零件号别名 | 0015247100 15-24-7100-PB 42385-10A1 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Trays |
| 工厂包装数量 | 1440 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 海关税号 | 85366910 |
电气参数
| 额定电压 | 600 V | 最大额定电流 | 7 A |
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 重量 | 0.009 | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Female Socket | 安装类型 | Through Hole |
| 行程角度 | Straight | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 排数 | 2 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 端接样式 | Through Hole | 触点数 | 10 |
| 接触件端接 | :Through Hole Vertical | 位数 | 10 |
| 接触镀层厚度 | 100µin (2.54µm) | 第一连接器安装类型 | :PCB |
产品信息
| 类型 | Wire to Board | 连接器性别 | RCP |
| 系列 | 42385 | 产品特性 | Board Lock |
| 制造商全称 | Mini-Fit BMI | 产品子类型 | Receptacles / Sockets - PCB |
| 电路数 | 10 | 加载位置数 | All |
