14-56-2172
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector F 17 POS 2.54mm IDT ST Cable Mount Tube CONN IDC 17POS .100 GOLD 24AWG Headers & Wire Housings CGrid SL IDT Opt G 15 SAu 17Ckt |
| 分类 |
商业参数
| 商标名 | C-Grid, SL | 零件号别名 | 0014562172 70400-0681 |
| 产品类别 | Headers & Wire Housings | 标准包装数量 | Rail / Tube |
| 工厂包装数量 | 360 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
电气参数
| 额定电压 | 250 V | 最大额定电流 | 3 A |
机械参数
| 颜色 | Black | 间距 | 2.54 mm |
| 包装方式 | Tube | 导线类型 | Discrete or Ribbon Cable |
| 导线线规 | 24 AWG | 端接方式 | IDT |
| 触头类型 | Female Socket | 安装类型 | Free Hanging (In-Line) |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 紧固类型 | Latch Lock | 安装样式 | Cable |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester Alloy | 电缆端接方式 | IDC |
| 端接样式 | IDC | 第一触头极性 | Socket (Female) |
| 触点数 | 17 | 位数 | 17 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | IDC Connector | 连接器性别 | F |
| 系列 | 70400 | 产品特性 | Closed End |
| 产品子类型 | Receptacles / Sockets - Housings | ||
文档与媒体
相关型号
0623003100
molex
Connector Accessories Discrete Wire Terminator HAWK Semi-Automatic Discrete Wire Terminator For SL SL HAWK DISCRETE WIRE CE
0623003000
molex
RIBBON CABLE HAWK W/O BREAK-OFF STATION HAWK Ribbon Cable Terminator For SL Without Break-Off RIBBON CABLE HAWK
0015045401
molex
Connector Accessories 40 POS Interim Clip Polyester Black Bag CONN 2.54MM INTERIM CLIP 40CIRC
0623005300
molex
RIBBON CABLE HAWK W/ BREAK-OFF STATION HAWK Ribbon Cable Terminator With For SL Break-Off RIBBON CABLE HAWK W/BREAKOFF
0011200949
molex
Connector Accessories IDT Semi automatic Bench Top Terminator IDT - Semi-automatic - Bench-Top Terminator BENCH-TOP TERMINATOR SEMI-AUTO
0623005200
molex
FFC HAWK W/ BREAK-OFF STATION HAWK FLAT FLEX CABLE TERMINATOR FOR SL WITH BREAK-OFF

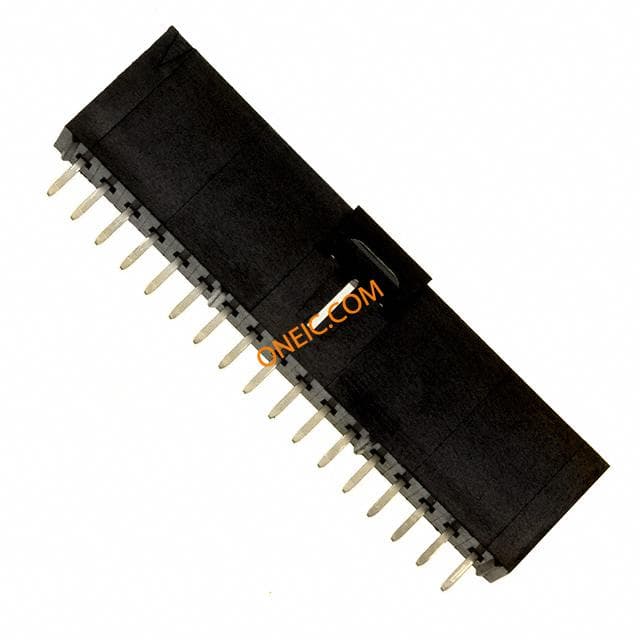

0705430016
