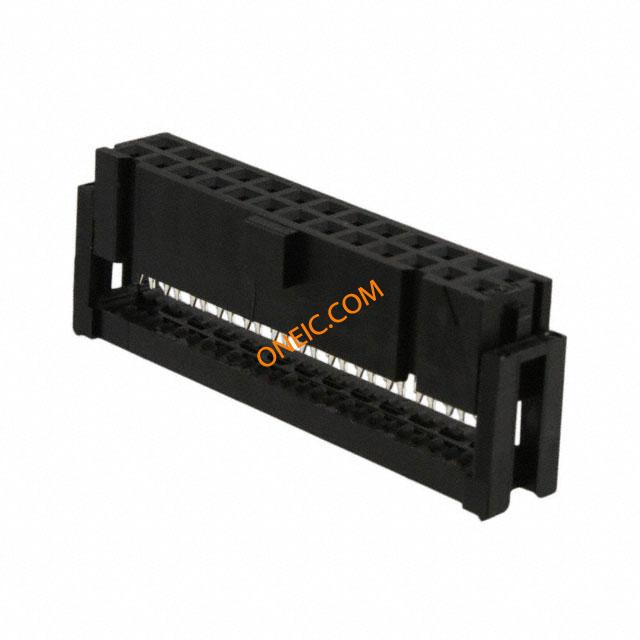

点击放大查看
0906351262
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 26 POS 2.54mm IDT RA Cable Mount Tray 2.54MM QF50 RECPT VERT 26CKT |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 | 最大额定电流 | 1/Contact |
| 最小输入电压 | 250VDC|250VAC | ||
机械参数
| 颜色 | Black | 深度 | 7.1 |
| 间距 | 0.100" (2.54mm) | 高度 | 15.2 |
| 包装方式 | Tray | 导线类型 | Ribbon Cable |
| 导线线规 | 26-28 AWG | 排间距 | 0.100" (2.54mm) |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Cable Mount |
| 连接器类型 | Receptacle | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 37.62 |
| 电缆端接方式 | IDC | 触点数 | 26 |
| 位数 | 26 | 接触镀层厚度 | 30µin (0.76µm) |
产品信息
| 类型 | IDC Connector | 连接器性别 | RCP |
| 产品特性 | Feed Through, Polarizing Key | ||
