点击放大查看

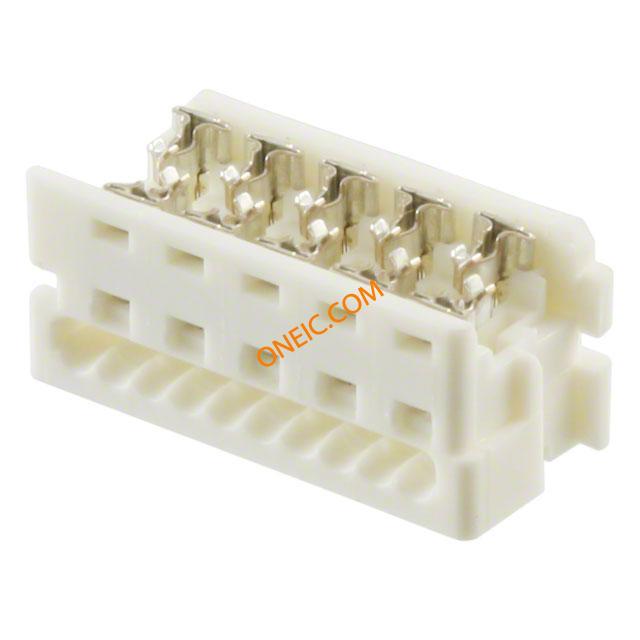

0903270310
| 制造商 | Molex, LLC |
| 描述 | Conn IDC Connector RCP 10 POS 2.54mm IDT RA Cable Mount Bag CONN RECEPT IDT 10POS 1.27MM TIN Connector: wire-board; PicoFlex; plug; female; 10; tinned; 1.2A |
| 分类 |
商业参数
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大电压 | 250V | 最大额定电流 | 1.2/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | White | 深度 | 7 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6.4 mm |
| 重量 | 0.65 g | 包装方式 | Bag |
| 导线类型 | Ribbon Cable | 导线线规 | 26-28 AWG |
| 端接方式 | IDT | 触头类型 | Female Socket |
| 柱间距 | 1.27mm | 外壳颜色 | White |
| 安装类型 | Cable Mount | 连接器类型 | Receptacle |
| 接触镀层 | Tin Over Nickel | 安装样式 | Cable |
| 排数 | 2 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Polyester | 总长度 | 15.21 mm |
| 包装数量 | 500 | 电缆端接方式 | IDC |
| 连接器 - 电缆 | plug | 触点数 | 10 |
| 位数 | 10 | 接触镀层厚度 | 78.7µin (2.00µm) |
| 触点材料 - 镀层 | tinned | 第一连接器安装特征 | 2x5 |
产品信息
| SPG | 500 | 类型 | IDC Connector |
| 连接器性别 | RCP | 产品特性 | Feed Through |
| 适配器系列 | PicoFlex | 单元数量 | 1 |
环境参数
| 工作温度 | -40C to 105C | ||
相关型号
0903253010
molex
Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 10POS 1.27MM GOLD
0702471051
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Tray CONN HEADER 10POS .100 R/A 15AU
0691271001
molex
Connector Accessories Bench Press Tool Semi-Automatic Bench Press PB14 For 90327 Connectors, 4 to 26 Circuit PB14 PNEUMATIC TERMINATOR
0903250010
molex
Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Bag CONN HEADER 10POS 1.27MM TIN Connector: wire-board; PicoFlex; socket; male; 10; tinned; 1.2A
0691271024
molex
Connector Accessories Semi Automatic Bench Press Tool with Auto De Reeling Semi-Automatic Bench Press PB14 With Auto De-Reeling For 90327 Connectors PB14 DETAPE-110 VOLTS
0702461001
molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100 VERT GOLD
90814-3810
molex
Conn Ribbon Cable Connector HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10PS 1.27MM SMD GOLD Header 1.27mm,SMT, vert, low pro, 10w Headers & Wire Housings 1.27MM 10P VERT HDR LO-PRO SMT,AU Molex PICOFLEX 系列 10路 1.27mm节距 公 IDC 连接器 , 表面安装
90325-7010
molex
Conn Ribbon Cable Connector HDR 10 POS 1.27mm Solder ST Thru-Hole Tube CONN HEADER 10PS 1.27MM GOLD T/H Headers & Wire Housings PICOFLEX 10P HDR AU R/A LP W/PCB PEGS
90814-0010
Molex
Headers & Wire Housings Obsolete CONN HEADER 10POS 1.27MM SMD TIN 10 way surface mount header,1.27mm pitch Straight header SMD 10P, 90814-0010, Molex Molex PICOFLEX 系列 10路 1.27mm节距 公 IDC 连接器 , 表面安装
70246-1021
Molex
Headers & Wire Housings 10P 2ROW HEADER CONN HEADER 10POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
70246-1022
Molex
Headers & Wire Housings HEADER C-GRID 10P CONN HEADER 10POS .100 VERT GOLD 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.76µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC ... 2.54mm Pitch C-Grid® Header, Low Profile, Dual Row, Vertical, Shrouded, 10 Circuits, 0.76µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
70247-1002
Molex
Headers & Wire Housings C-GRID 10 CKT SHROUD CONN HEADER 10POS .100 R/A GOLD
70247-1001
Molex
Headers & Wire Housings 10P R/A SHROUDED HDR CONN HEADER 10POS .100 R/A GOLD 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) ... 2.54mm Pitch C-Grid® Header, Dual Row, Low Profile, Right Angle, Shrouded, 10 Circuits, 0.38µm Gold (Au) Selective Plating, Tin/Lead (Sn/Pb) PC Tail Plating
0908140810
Molex
Conn Ribbon Cable Connector HDR 10 POS 2.54mm Solder ST SMD Tube CONN HEADER 10POS 1.27MM SMD TIN
0702461002
Molex
Conn Shrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Tray CONN HEADER 10POS .100 VERT GOLD

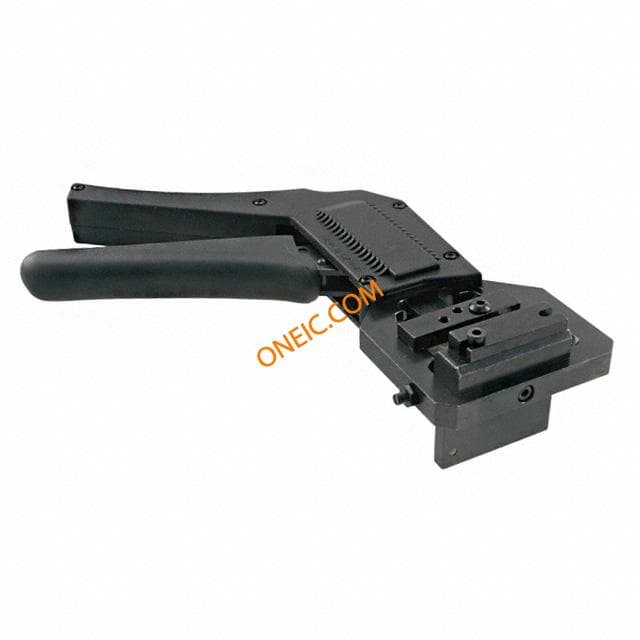

0690081090
