点击放大查看

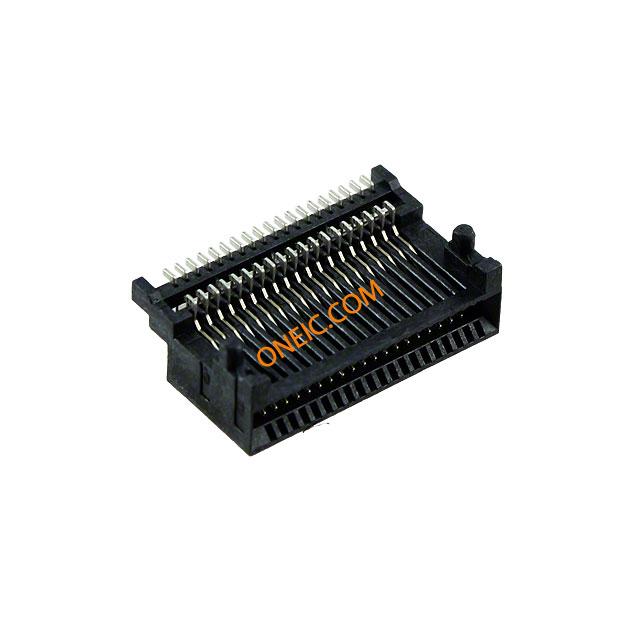

0755860011

制造商	Molex, LLC
描述	Conn SCSI RCP 38 POS 0.8mm Solder RA SMD 38 Terminal 1 Port T/R CONN RCPT 38POS IPASS RT ANG SMD
分类	连接器解决方案接线端子DIN导轨接线端子

商业参数

其他名称

WM1117CT

标准包装数量

550

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最大额定电流	0.5/Contact A	最小输入电压	30VDC\|30VAC
最小供电电压	30VDC/30VAC

机械参数

深度	11.5 mm	间距	0.8 mm
高度	5.35 mm	包装方式	Tape and Reel
端接方式	Solder	安装类型	Surface Mount
连接器类型	SAS, Mini	接触镀层	Gold Over Nickel
安装样式	Surface Mount	连接器样式	Receptacle
触头材料	Copper Alloy	壳体材料	Thermoplastic
总长度	18.2 mm	触点数	38
位数	38	接触镀层厚度	30µin (0.76µm)

产品信息

类型	SCSI	连接器性别	RCP
已删除	Compliant	产品特性	Board Guide
端口数	1

环境参数

工作温度

-40C to 80C

结工作温度

80C

文档与媒体

0755860011_IO_CONNECTORS.pdf

相关型号

暂无图片

0745480217

molex

Connector Accessories 26 POS External iPass Mini Multi-Lane SAS Guide HousingRight Angle Tray 1X4 EMI HOUSING ASSY 0 DEGREE

¥40.1861

详情

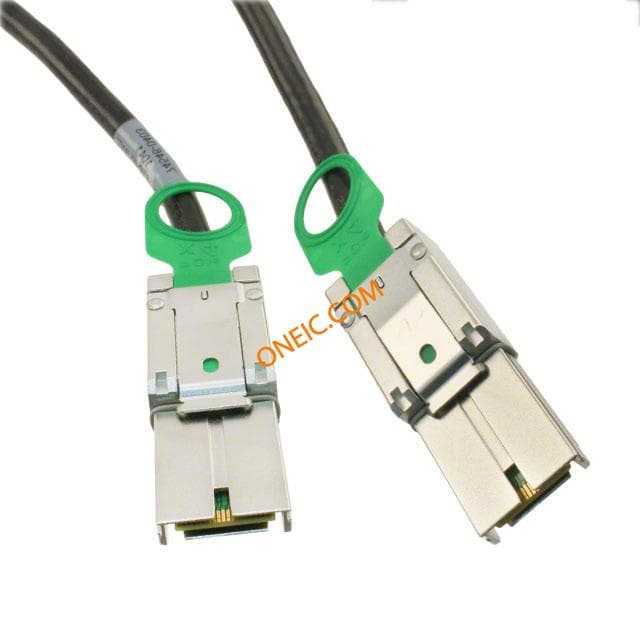

0745460401
