点击放大查看

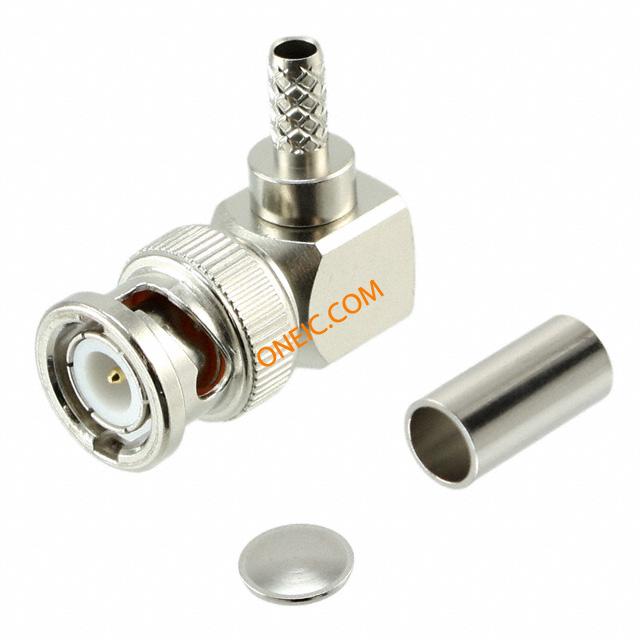

0731000015

制造商	Molex, LLC
描述	Conn BNC PL 50Ohm Crimp RA Cable Mount Gold Bag CONN BNC PLUG R/A 50 OHM SOLDER
分类	连接器解决方案同轴连接器(RF)射频同轴连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

294

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

阻抗	50 Ohm	额定电压	1000V
最大频率	10GHz

机械参数

高度	24	包装方式	Bag
本体表面处理	Nickel	电缆组	RG-58C, 141A, 303
端接方式	Crimp	基体材料	Brass
外壳颜色	Silver	安装类型	Cable Mount
连接器类型	Plug, Male Pin	接触镀层	Gold
紧固类型	Bayonet Lock	壳体镀层	Nickel
连接器样式	BNC	触头材料	Brass
总长度	28	屏蔽层端接方式	Crimp
接触件端接	Solder	介电材料	Polytetrafluoroethylene (PTFE)
绝缘材料 - 类型	Polytetrafluoroethylene	中心触点镀层工艺	Gold
中心触点材料	Brass

产品信息

类型	BNC	连接器性别	PL
连接类型	RG141 Cable

环境参数

工作温度

-65°C ~ 95°C
