0717182001
| 制造商 | |
| 描述 | Conn D-Subminiature RCP 200 POS 1.27mm Solder RA SMD Tube SHLD R/A RECEPTACLE 200POS |
商业参数
| 标准包装数量 | 240 | ||
合规参数
| RoHS | Contains lead / RoHS non-compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1/Contact | 最小输入电压 | 40V |
机械参数
| 颜色 | Black | 间距 | 1.27 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Right Angle |
| 连接器类型 | Receptacle, Female Sockets | 接触镀层 | Gold |
| 法兰特征 | Housing/Shell (M3) | 排数 | 4 |
| 触头材料 | Beryllium Copper | 壳体材料 | Thermoplastic |
| 第一触头极性 | RCP | 触点数 | 200 |
| 位数 | 200 | 外壳材料及表面处理 | Steel |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | D-Subminiature | 产品特性 | Board Lock |
环境参数
| 工作温度 | -20°C ~ 80°C | ||
相关型号
0716283000
molex
Connector Accessories LFH Connector Guide Pin Steel Nickel Finish Bag Connector Accessories Bag GUIDE PIN LFH MATRIX 50/75
0709821004
molex
Conn Rectangular Bag Standoffs Hex Male-Female M/F JACKPOST FOR LFH
0709821002
molex
Connector Accessories Hexagonal Screw Lock Bag JACKPOST KIT FOR LFH
0716293000
molex
Connector Accessories Guide Sleeve Bag LFH MTX50&75 DKG HDW GUIDE

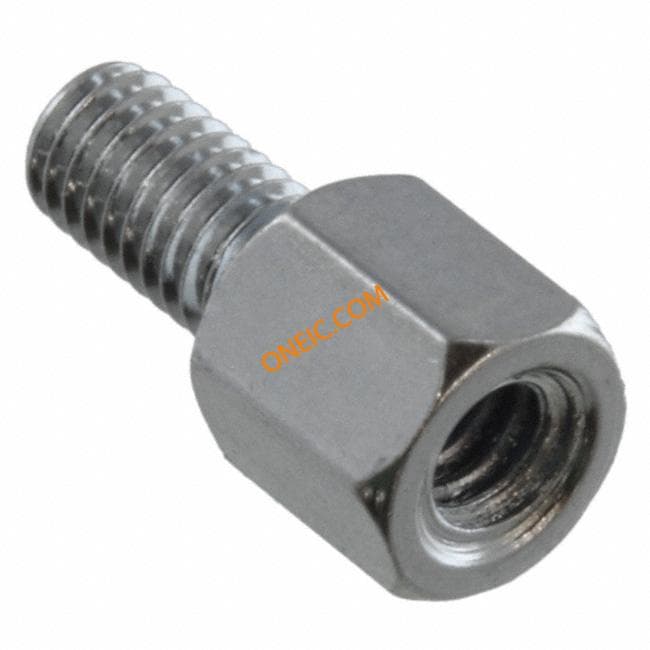

0709821003
molex
Connector Accessories LFH and TDP Panel Mount Hex Screw Lock Bag CONN HEX LOCK SCREW
0716294000
molex
Connector Accessories LFH Guide Sleeve Bag MTX50&75 DKG HDW GUIDE SLEEVE
0709821008
molex
Connector Accessories Panel Mount Screw Lock Straight Steel Bulk Connector Accessories Screw Lock Bulk JACKPOST FOR LFH
0709821005
molex
Connector Accessories Hex Screw Kit Bag Standoffs Hex Male-Female M/F JACKPOST FOR LFH

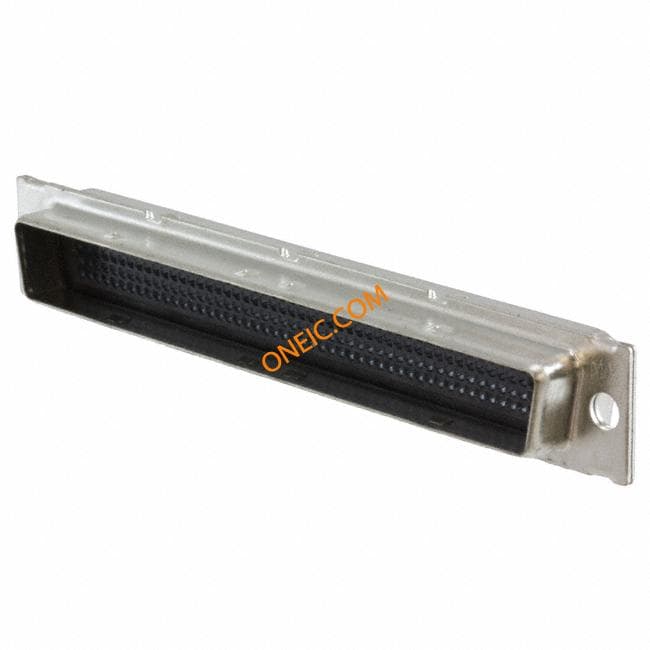

0717193000
