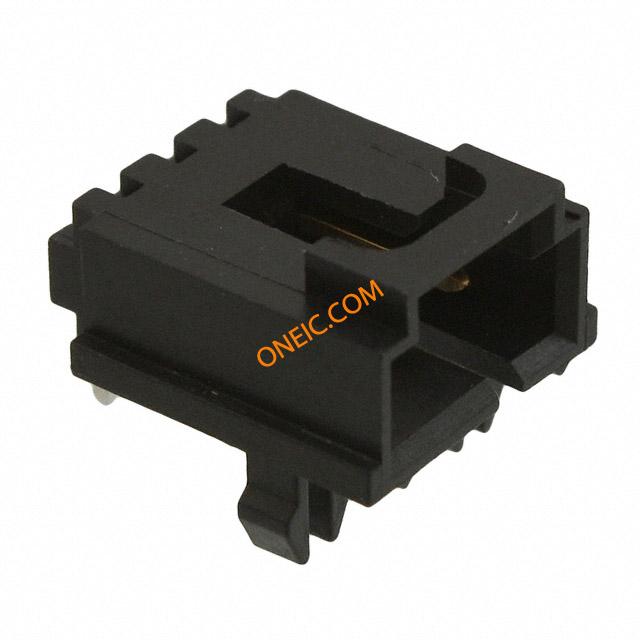

点击放大查看
0705510037
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 3 POS 2.54mm Solder RA Thru-Hole Tube CONN HEADER 3POS R/A GOLD T/H |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 颜色 | Black | 深度 | 13.59 mm |
| 间距 | 0.100" (2.54mm) | 高度 | 6.99 mm |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold | 紧固类型 | Latch Holder |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Copper Alloy | 壳体材料 | Polyester |
| 触点数 | 3 | 位数 | 3 |
| 接触长度 - 配合 | 0.240" (6.10mm) | 接触镀层厚度 | 15µin (0.38µm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 已删除 | Compliant | 产品特性 | Board Lock |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | ||
