点击放大查看

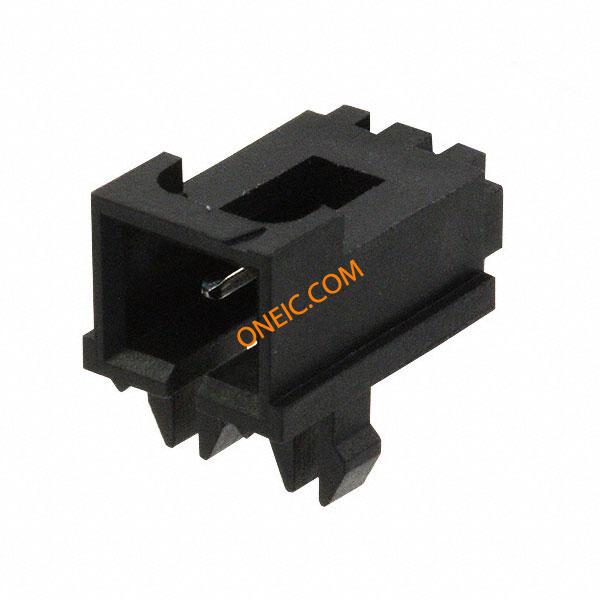

0705510001
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 2 POS 2.54mm Solder RA Thru-Hole Tube SL R/A LATCH HEADER TIN 2CKT |
| 分类 |
商业参数
| 标准包装数量 | Rail / Tube | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 15 | 最大额定电流 | 3/Contact |
| 最小输入电压 | 250VAC | ||
机械参数
| 颜色 | Black | 深度 | 13.59 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.99 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Black |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Nickel | 紧固类型 | Latch Holder |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 触点数 | 2 |
| 位数 | 2 | 接触长度 - 配合 | 0.240" (6.10mm) |
| 接触镀层厚度 | 150µin (3.81µm) | ||
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 产品特性 | Board Lock | 加载位置数 | All |
文档与媒体
相关型号
0050579502
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HOUSING RCPT .100 2POS

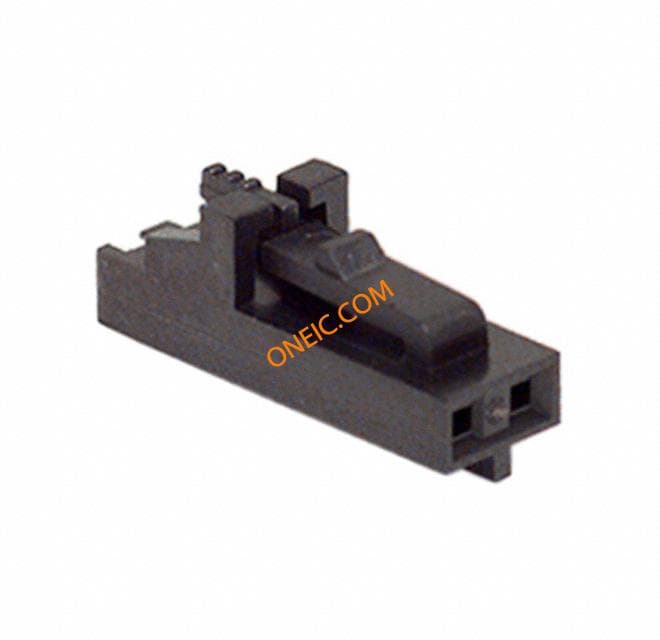

0050579402
molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Panel Mount Bag Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 2POS .100 W/LATCH
0050579302
Molex
Conn Housing RCP 2 POS 2.54mm Crimp ST Bag CONN HSG 2POS .100 SINGLE VER D

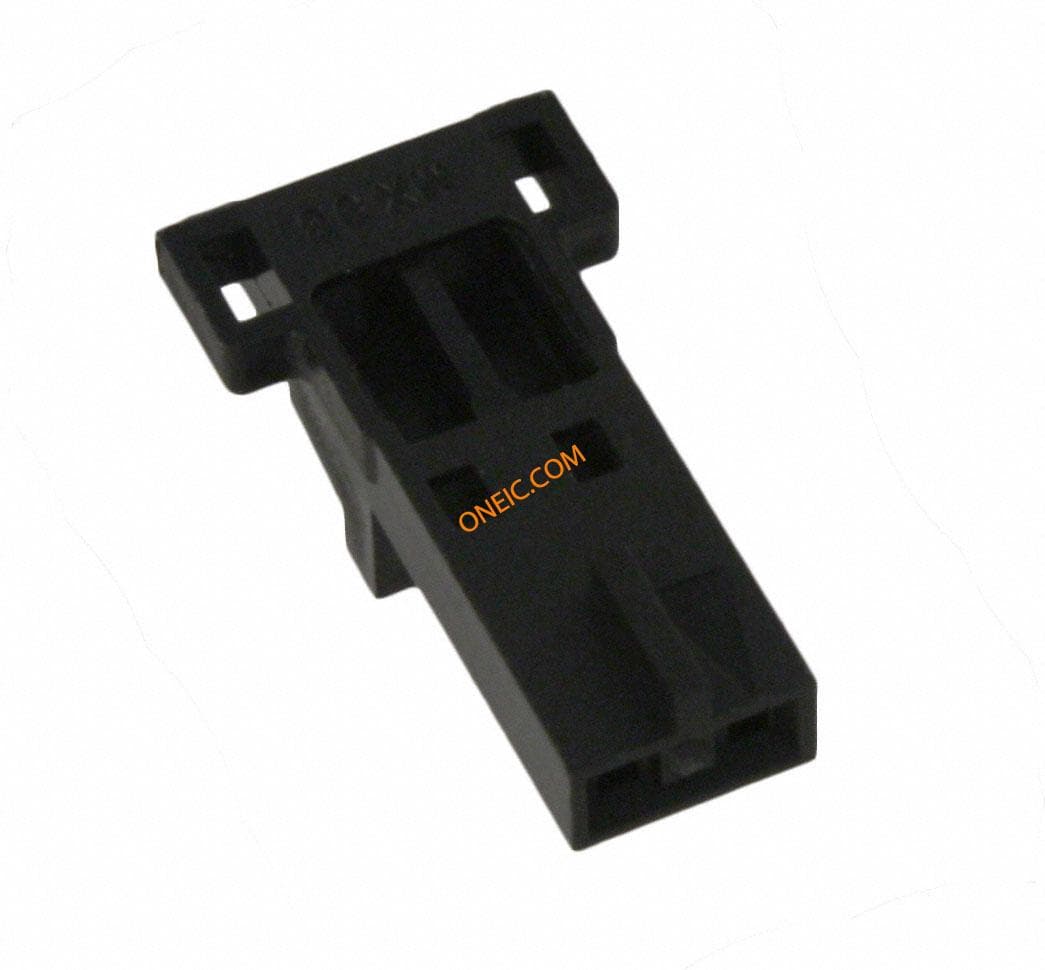

0050579702
Molex
Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN FEMALE HSG POS LTCH 2CKT
0050579202
Molex
Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag CONN HSG 2POS .100 SINGLE VER C
0050579002
Molex Inc
CONN HOUSING 2POS .100 SINGLE Conn Housing F 2 POS 2.54mm Crimp ST Cable Mount Bag PLUG & SOCKET HOUSING, RECEPTACLE, 2POS, 2.54MM
14-60-0021
Molex Connector Corporation
CONN IDC 2POS .100 TIN 24AWG Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount Tube
14-60-0022
Molex Connector Corporation
CONN IDC 2POS .100 TIN 24AWG Conn IDC Connector F 2 POS 2.54mm IDT ST Cable Mount Tube

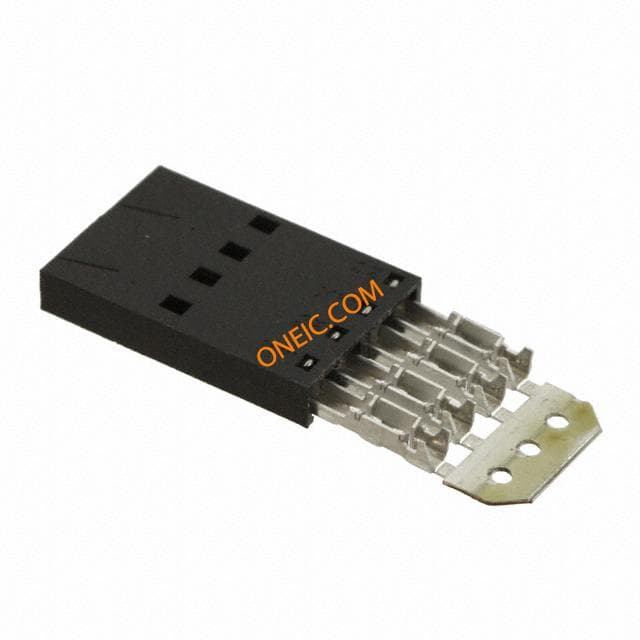

14-56-2021
