点击放大查看

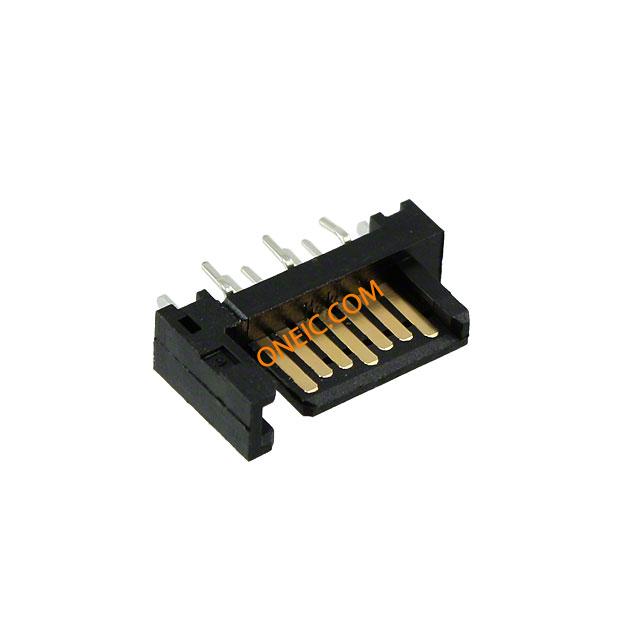

0674911032
| 制造商 | |
| 描述 | Conn SATA PL 7 POS Solder ST Thru-Hole 7 Terminal 1 Port Tray CONN HEADER SATA 7POS PCB GOLD |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1.5/Contact | 最小输入电压 | 15V |
机械参数
| 深度 | 4 | 高度 | 8.4 |
| 包装方式 | Tray | 端接方式 | Solder |
| 安装类型 | Through Hole | 连接器类型 | SATA |
| 接触镀层 | Gold Over Nickel | 连接器样式 | Header |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 16 | 触点数 | 7 |
| 位数 | 7 | ||
产品信息
| 类型 | SATA | 连接器性别 | PL |
| 端口数 | 1 | ||
环境参数
| 工作温度 | 85 | ||
文档与媒体
相关型号

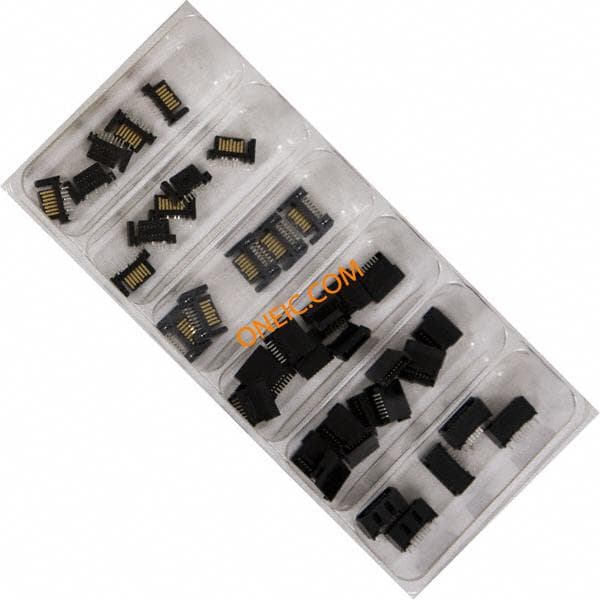

76650-0169
