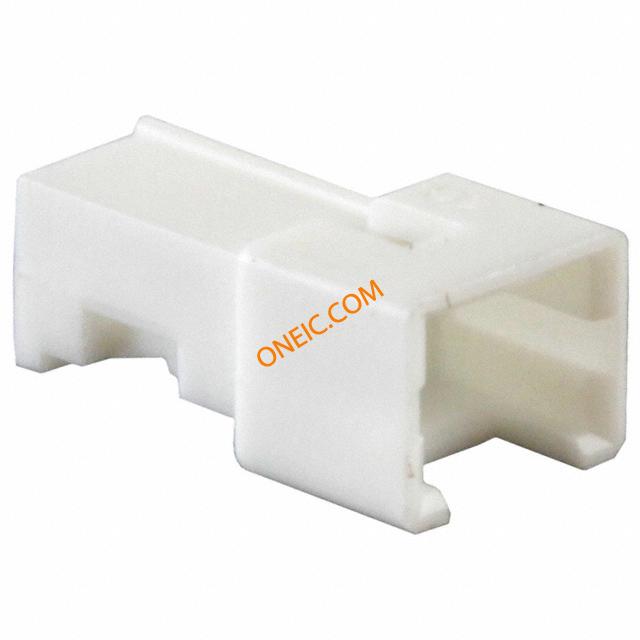

0510470200
| 制造商 | Molex, LLC |
| 描述 | Conn Housing M 2 POS 1.25mm Crimp ST Cable Mount Bag 2CKT 1.25MM W-W CONN PLUG HOUS |
| 分类 |
商业参数
| 标准包装数量 | 1,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 1/Contact | 最小输入电压 | 125V |
机械参数
| 颜色 | Natural | 深度 | 8 |
| 间距 | 0.049" (1.25mm) | 高度 | 3.2 |
| 包装方式 | Bag | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Straight |
| 连接器类型 | Plug | 排数 | 1 |
| 壳体材料 | Polyester | 总长度 | 4.25 |
| 触点数 | 2 | 接触件端接 | Crimp |
| 位数 | 2 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | M | ||
相关型号
0510210200
molex
Conn Housing RCP 2 POS 1.25mm Crimp ST Cable Mount Bag Conn Housing F 2 POS 1.25mm Crimp ST Cable Mount Bag CONN HOUSING 2POS 1.25MM NATURAL Plug; wire-board; female; PIN:2; w/o terminals; 1.25mm; for cable
0501338000
Molex, LLC
. 0501338000 - Pin Contact Tin 28-32 AWG Crimp from Molex. from now!
0501258000
molex
Contact PIN Crimp ST Cable Mount Reel CONN TERM MALE 26-28AWG TIN T&R

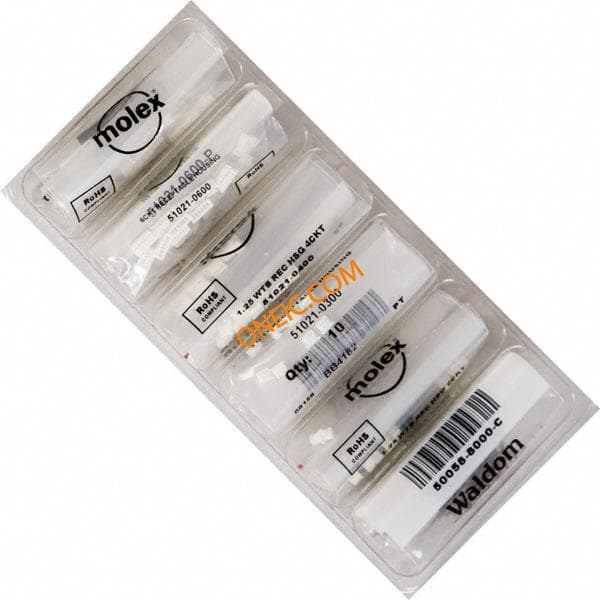

76650-0125
