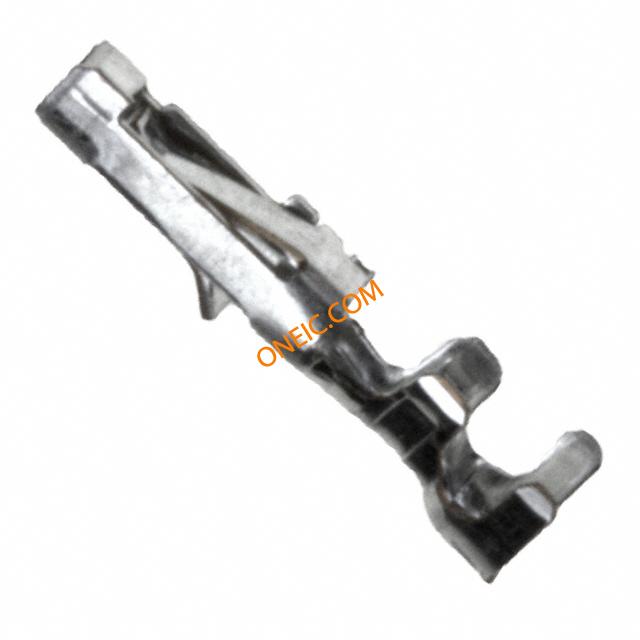

0500138100
| 制造商 | Molex, LLC |
| 描述 | Contact SKT Crimp ST Cable Mount Bag CONN TERM FEMALE 24-28AWG TIN |
| 分类 |
商业参数
| 交货时间 | 41 Days | 子类别 | Connector Contact |
| 标准包装数量 | 1 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 1 A |
| 最小供电电压 | 125VAC | ||
机械参数
| 深度 | 2 mm | 间距 | Not Required mm |
| 高度 | 2 mm | 包装方式 | Bag |
| 导线线规 | 24-28 AWG | 屏蔽类型 | No |
| 端接方式 | Crimp | 触头类型 | Signal |
| 外壳颜色 | Not Required | 安装类型 | Cable Mount |
| 插针或插孔 | Socket | 连接器类型 | Connector Headers and PCB Recepta... |
| 接触镀层 | Pre-Tin | 安装样式 | Cable |
| 触头材料 | Phosphor Bronze | 壳体材料 | Not Required |
| 总长度 | 8.3 mm | 触点数 | Not Required |
| 接触件端接 | Crimp | ||
产品信息
| 类型 | Contact | 连接器性别 | SKT |
| 行业别名 | 50013-8100, 500138100 | 适用产品/相关产品 | 0500138000 |
相关型号

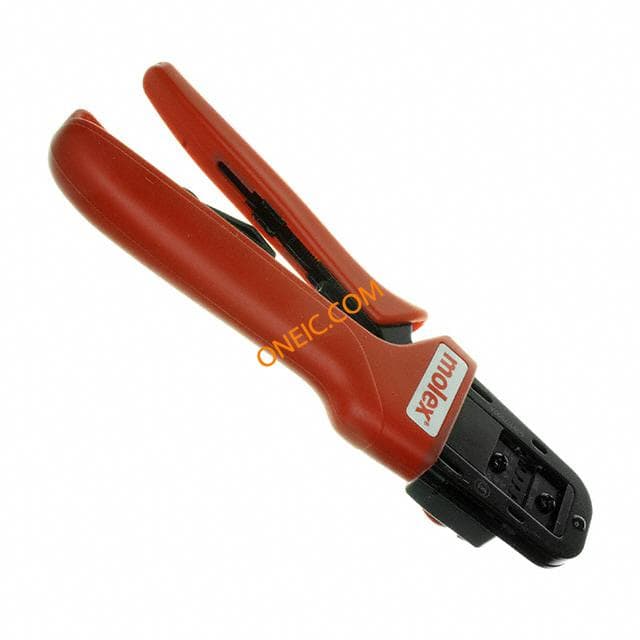

0638117800
molex
Connector Accessories Hand Crimp Tool Hardware Tools Hand Crimp Tool TOOL HAND CRIMP 24-28AWG
0638615000
molex
FINE ADJUST APPLICATOR Fineadjust Applicator With Function Crimp
0510050201
molex
2CKT 2MM W-W CONN REC HOU
0510050300
molex
Conn Housing RCP 3 POS 2mm Crimp ST Cable Mount Bag CONN RCPT 3POS 2MM WIRE TO WIRE
0510050200
molex
Conn Housing RCP 2 POS 2mm Crimp ST Cable Mount Bag CONN RCPT 2POS 2MM WIRE TO WIRE
51005-0700
Molex
Headers & Wire Housings 2.00 MM WIRE-TO-WIRE
51005-1000
Molex
Headers & Wire Housings Obsolete CONN RECEPT 10POS 2MM WIRE/WIRE
76650-0189
molex
COMPONENT KITS, WIRE TO WIRE KIT 2,3,4,5POS 1-2A FREE-HANGING MOUNTING PLUGS, RECEPTACLE 2MM PITCH 125V 28-24 WIRE SIZE KIT CONN 2.0MM WTW I/O Connectors 2.0 Thin Conn Kit Locking Plg Recept 2.0 THIN CONNECTOR KIT LOCKING PLUG & RECEPT

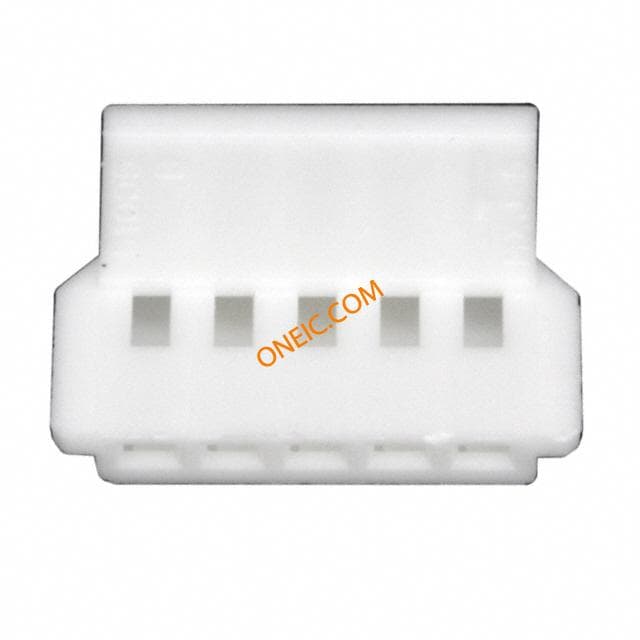

51005-0500
