点击放大查看

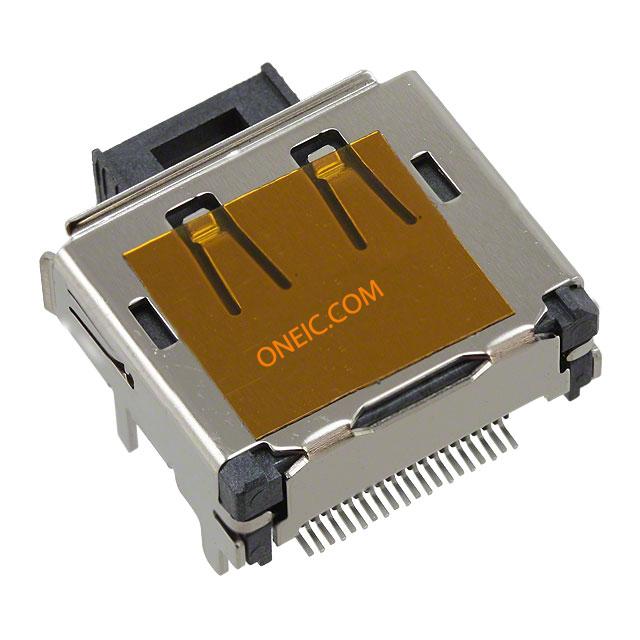

0472720024
| 制造商 | |
| 描述 | Conn Display Port M 20 POS 0.5mm Solder RA SMD 20 Terminal 1 Port Embossed T/R CONN RCPT DISPLAYPORT 20POS R/A 1.0 DISPLAY PORT HEADER W/COVER |
| 分类 |
商业参数
| 其他名称 | WM3971CT | 标准包装数量 | 1,000 |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 0.5/Contact | 最小输入电压 | 40VAC |
机械参数
| 深度 | 14.39 | 间距 | 0.5 mm |
| 高度 | 6.65 | 包装方式 | Embossed Tape and Reel |
| 端接方式 | Solder | 安装类型 | Surface Mount |
| 连接器类型 | DisplayPort | 接触镀层 | Gold Over Nickel |
| 触头材料 | Copper Alloy | 壳体材料 | Thermoplastic |
| 总长度 | 17.79 | 触点数 | 20 |
产品信息
| 类型 | Display Port | 连接器性别 | M |
| 产品特性 | Board Guide, Cover, Shielded | 端口数 | 1 |
环境参数
| 工作温度 | 85 | ||
