点击放大查看

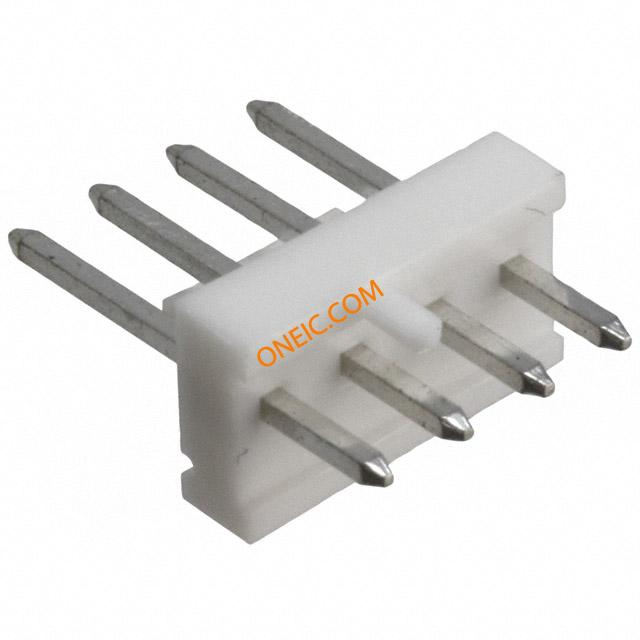

0470531000
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN 4 PIN HEADER |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 4/Contact | 最小输入电压 | 250V |
机械参数
| 颜色 | Ivory | 深度 | 5.84 |
| 间距 | 2.54 mm | 高度 | 10 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Ivory |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Tin | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 10.2 |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.295" (7.49mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 加载位置数 | All | ||
