点击放大查看

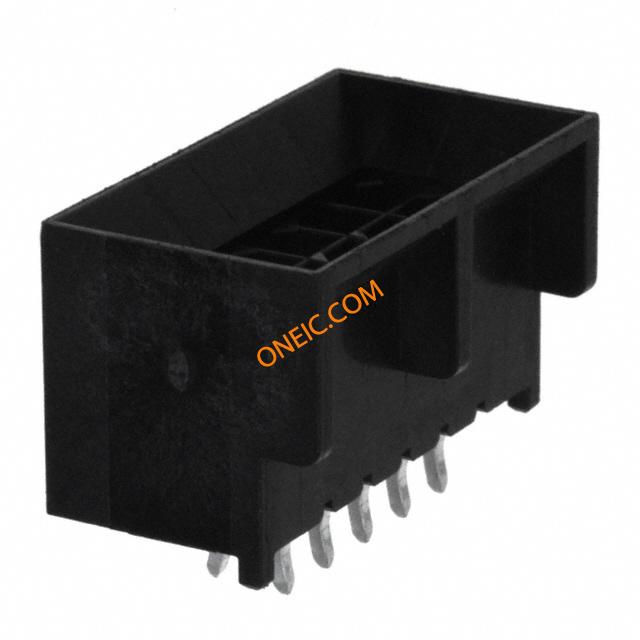

0444321002
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 10 POS 3mm Solder ST Thru-Hole Tray CONN HEADER 10POS 3MM VERT GOLD |
| 分类 |
商业参数
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 100 | 最大额定电流 | 5/Contact |
| 最小输入电压 | 250VAC | ||
机械参数

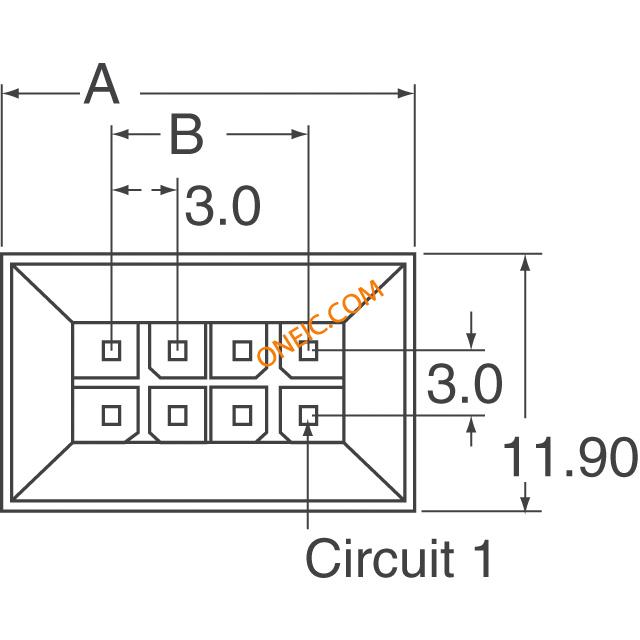

| 颜色 | Black | 深度 | 11.9 |

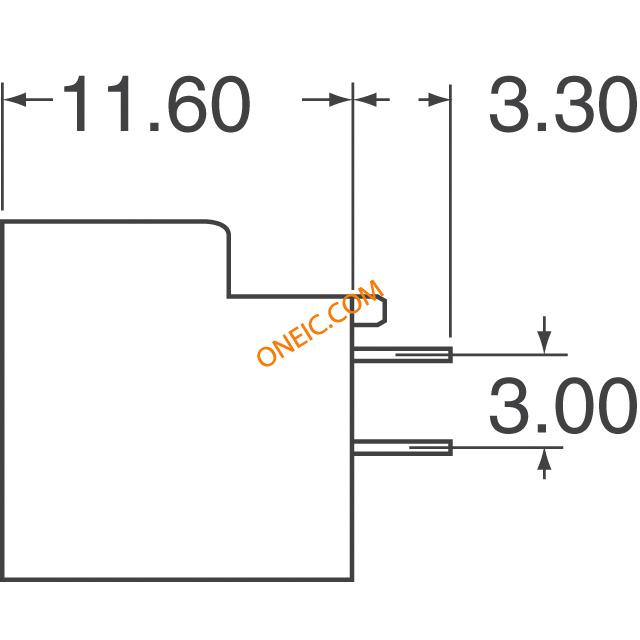

| 间距 | 0.118" (3.00mm) | 高度 | 11.6 |
| 包装方式 | Tray | 排间距 | 0.118" (3.00mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Black | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Gold Over Nickel |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Thermoplastic | 总长度 | 22 |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 15µin (0.38µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Board Guide | 加载位置数 | All |
文档与媒体
相关型号
0447691003
Molex, LLC
. 0447691003 - 10 Position Receptacle Connector 0.118" (3.00mm) Through Hole Gold from Molex. from now!
0447641003
Molex
Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray MICROFIT (3.0) BMI RA HDR/FEM
0441331000
Molex
Conn Housing RCP 10 POS 3mm Crimp ST Tray CONN RECEPT 10POS 3MM DUAL ROW

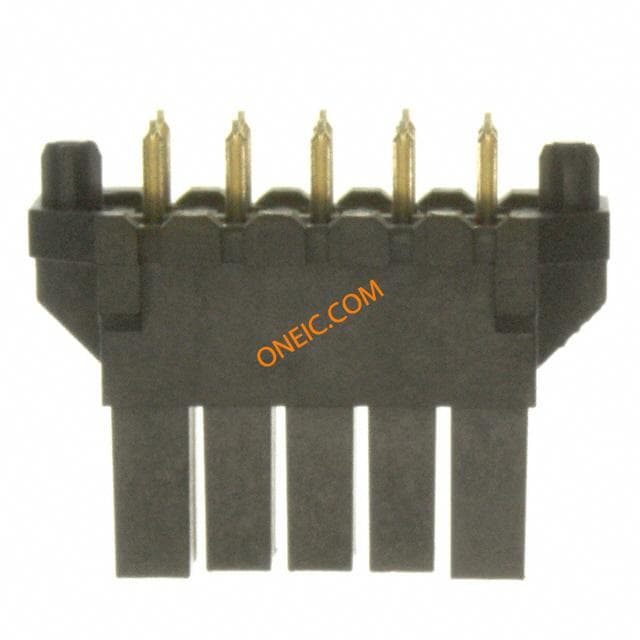

0447691001
Molex
Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Tray CONN HDR RCPT 10POS VERT TIN PCB

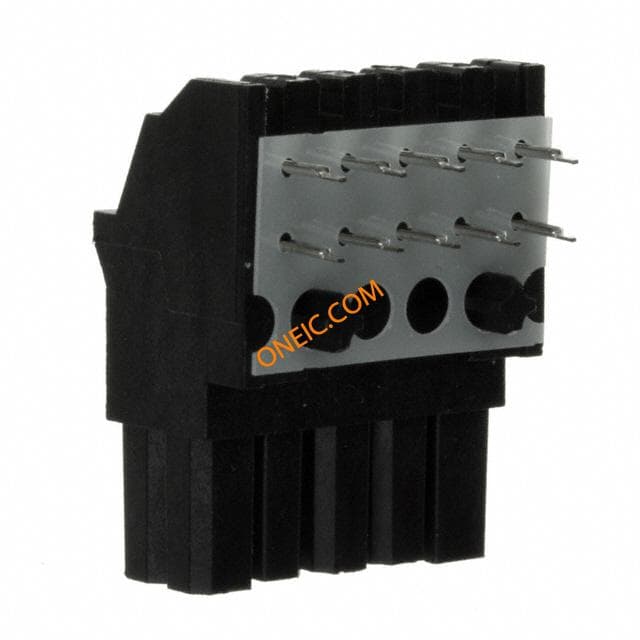

44764-1001
Molex Connector Corporation
CONN HEADER 10POS 3MM R/A TIN Headers & Wire Housings R.A. RECPT 10P tin w/friction pegs Conn Wire to Board RCP 10 POS 3mm Solder RA Thru-Hole Tray

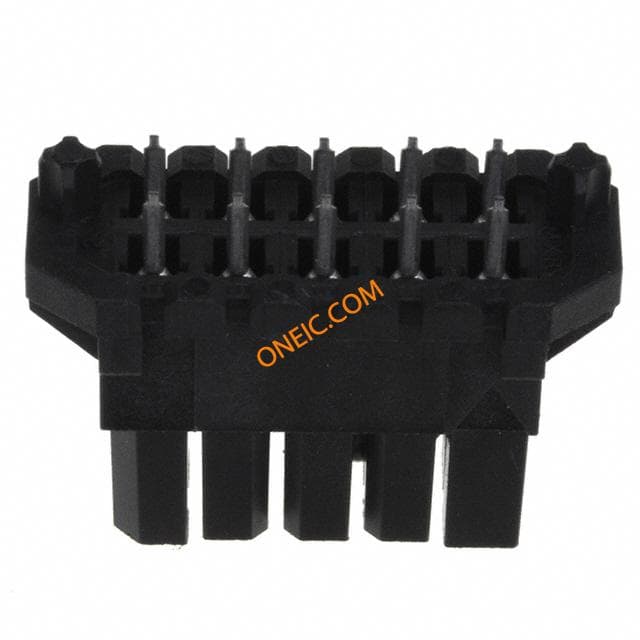

44769-1002
Molex Connector Corporation
CONN HDR RCPT 10POS 3MM VERT PCB Headers & Wire Housings VERT RECPT 10P gold w/friction pegs Conn Wire to Board RCP 10 POS 3mm Solder ST Thru-Hole Tray

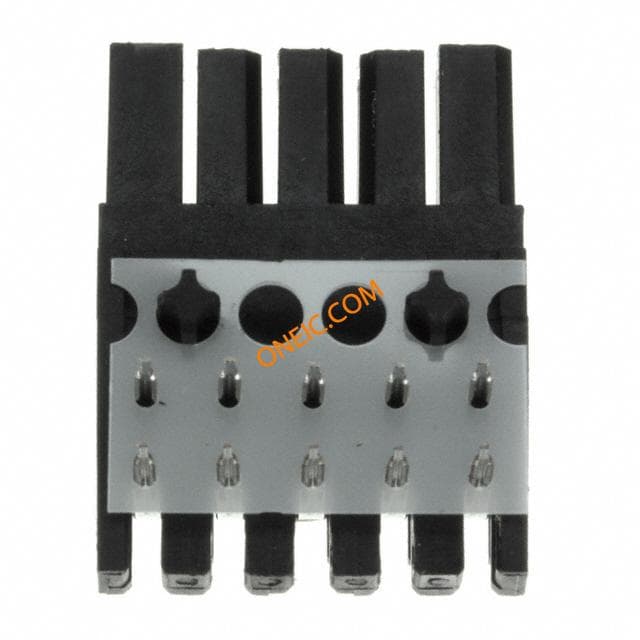

44764-1002
