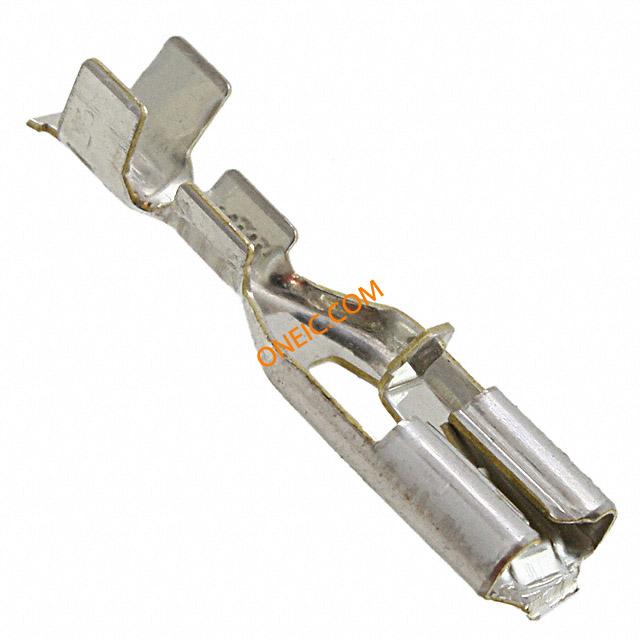

0350689722
| 制造商 | Molex, LLC |
| 描述 | Quick Disconnect Terminal 20AWG F Tin Reel CONN FEMALE TERM QD 20-22AWG |
| 分类 |
商业参数
| 其他名称 | WM7049CT | 标准包装数量 | Tape & Reel |
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 镀层 | Tin | 包装方式 | Reel |
| 插片宽度 | 0.187" (4.75mm) | 绝缘类型 | Non-Insulated |
| 插片长度 | 0.264" (6.70mm) | 导线线规 | 20 AWG |
| 端接方式 | Crimp | 基体材料 | Brass |
| 安装类型 | Free Hanging (In-Line) | 插片厚度 | 0.032" (0.81mm) |
| 端子类型 | Standard | 接触镀层 | Tin |
| 触头材料 | Brass | 总长度 | 0.756" (19.20mm) |
| 绝缘直径 | 0.059" ~ 0.106" (1.50mm ~ 2.69mm) | ||
产品信息
| 类型 | Quick Disconnect Terminal | 连接器性别 | F |
