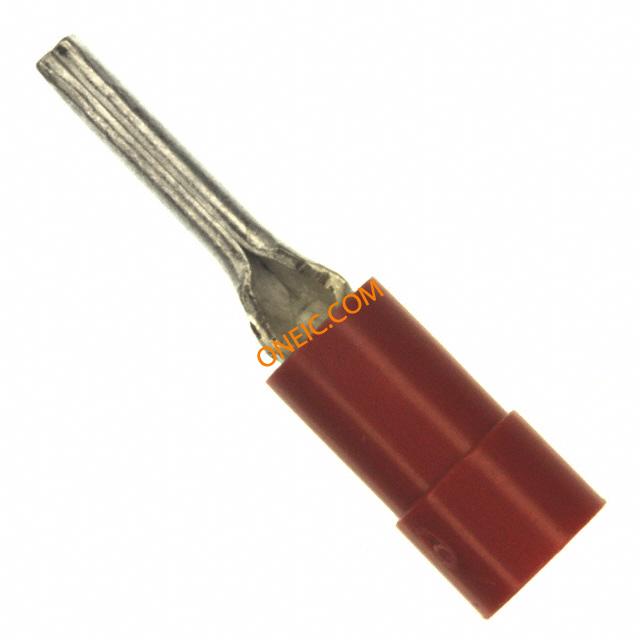

点击放大查看
0192120003
| 制造商 | Molex, LLC |
| 描述 | Wire Pin 18-22AWG M 22.61mm Tin Loose Piece CONN WIRE PIN TERM 18-22AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
机械参数
| 颜色 | Red | 镀层 | Tin |
| 包装方式 | Loose Piece | 绝缘类型 | Insulated |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 引脚长度（针脚） | 0.390" (9.91mm) | 引脚直径 | Circular - 0.078" (1.98mm) Dia |
| 基体材料 | Copper | 接触镀层 | Tin |
| 壳体镀层 | Tin | 触头材料 | Copper |
| 总长度 | 0.930" (23.62mm) | 绝缘直径 | 0.145" (3.68mm) |
| 绝缘材料 - 类型 | Polyvinyl Chloride | 筒体内径 | 0.055" (1.40mm) |
| 端接长度 | 0.400" (10.16mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
产品信息
| 类型 | Wire Pin | 连接器性别 | M |
文档与媒体
PDF 文档
