0191930152
| 制造商 | |
| 描述 | Ring Tongue Terminal 8AWG 24.99mm 12.26mm Electro-Tin Loose Piece CONN RING TERM 8AWG 1/4" CRIMP |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 深度 | 12.26 | 镀层 | Electro-Tin |
| 包装方式 | Loose Piece | 厚度 | 0.045" (1.14mm) |
| 绝缘类型 | Non-Insulated | 导线线规 | 8 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 6 mm |
| 端子类型 | Circular | 接触镀层 | Tin |
| 触头材料 | Copper | 总长度 | 0.984" (24.99mm) |
| 绝缘材料 - 类型 | Non-Insulated | 外缘宽度 | 0.483" (12.26mm) |
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Brazed Seam, Serrated Termination |
文档与媒体
PDF 文档
相关型号

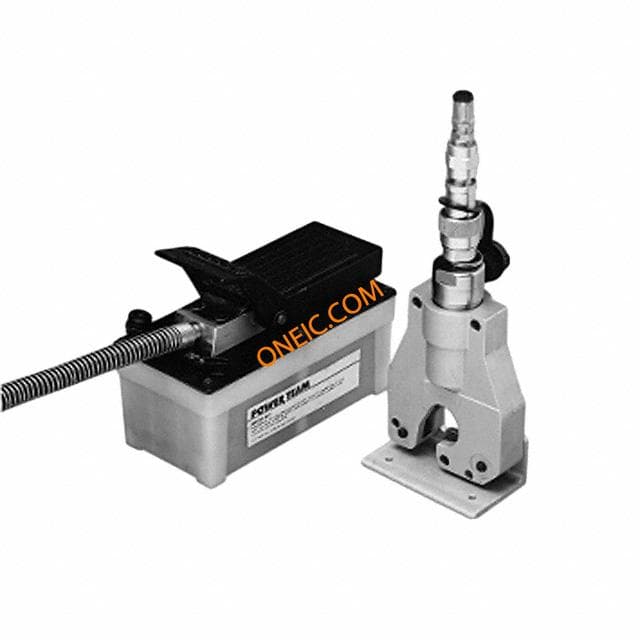

0192860065
molex
Connector Accessories Putt Pump Dieless Head System Hand Tool Putt Pump Dieless Head System TOOL DIELESS HEAD CRIMPER
¥29376.0000
详情

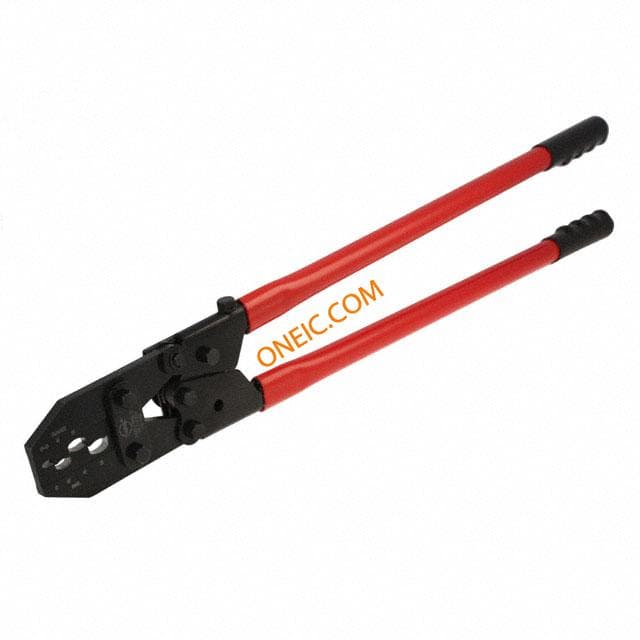

0640013900
