点击放大查看

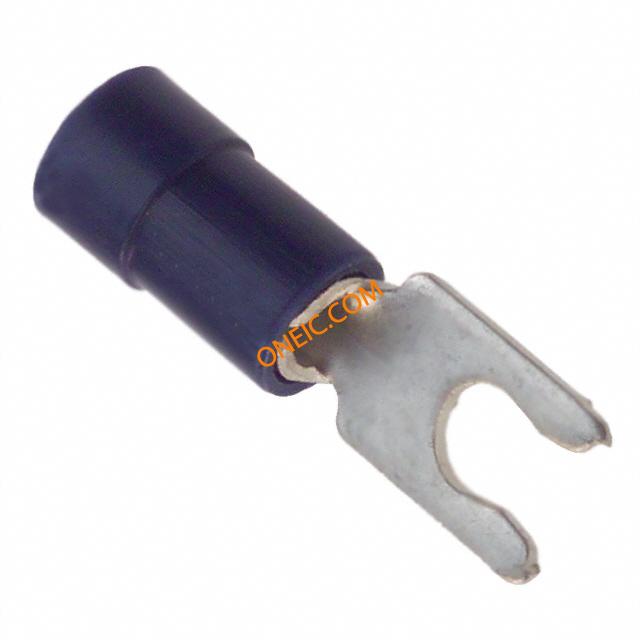

0190990027
| 制造商 | Molex, LLC |
| 描述 | Snap Spade Tongue Terminal 14-16AWG 20.6mm 6.6mm Tin Loose Piece CONN SNAP SPADE #6 14-16AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
机械参数
| 颜色 | Blue | 深度 | 6.6 mm |
| 镀层 | Tin | 包装方式 | Loose Piece |
| 绝缘类型 | Insulated | 导线线规 | 14-16 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 6 Stud |
| 端子类型 | Spring, Snap | 接触镀层 | Electro-Tin |
| 壳体镀层 | Tin | 触头材料 | Copper |
| 总长度 | 0.810" (20.57mm) | 绝缘直径 | 0.175" (4.45mm) |
| 绝缘材料 - 类型 | Polyvinyl Chloride | 外缘宽度 | 0.250" (6.35mm) |
| 端接长度 | 0.405" (10.29mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
| 舌片内部开口 | 0.114" (2.90mm) | 环中心到端接长度 | 0.230" (5.84mm) |
产品信息
| 类型 | Snap Spade Tongue Terminal | ||
