点击放大查看
0190730087
| 制造商 | Molex, LLC |
| 描述 | Ring Tongue Terminal 14-16AWG 22.48mm 8.18mm Electro-Tin Bag CONN RING TERM #10 14-16AWG |
| 分类 |
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
| 抗辐射加固 | No | ||
机械参数
| 颜色 | Blue | 深度 | 8.18 mm |
| 镀层 | Electro-Tin | 包装方式 | Bag |
| 厚度 | 0.031" (0.79mm) | 绝缘类型 | Insulated |
| 导线线规 | 14-16 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 5 mm | 端子类型 | Circular |
| 接触镀层 | Tin | 壳体镀层 | Electro-Tin |
| 触头材料 | Copper | 总长度 | 0.885" (22.48mm) |
| 绝缘直径 | 0.170" (4.32mm) | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.322" (8.18mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
产品信息
| 类型 | Ring Tongue Terminal | 已删除 | Compliant |
| 产品特性 | Serrated Termination | ||
文档与媒体
相关型号
0640051400
molex
AT-2100 CRIMP TOOL HEAD Crimp Head For The At-200 Pneumatic Hand Tool
0640050100
molex
Crimp Head For The At 200 Pneumatic Hand Tool Crimp Head For The AT 200 Pneumatic Hand Tool TOOL HEAD ASSY FOR 19279-0001
0640011400
molex
Hand Crimp Tool CRIMPTOOL SNAP PLUG 14-22AWG
0640010100
molex
Connector Accessories Hand Crimp Tool Hand Crimp Tool TOOL CRIMP TERM&SPLICE 10-22AWG

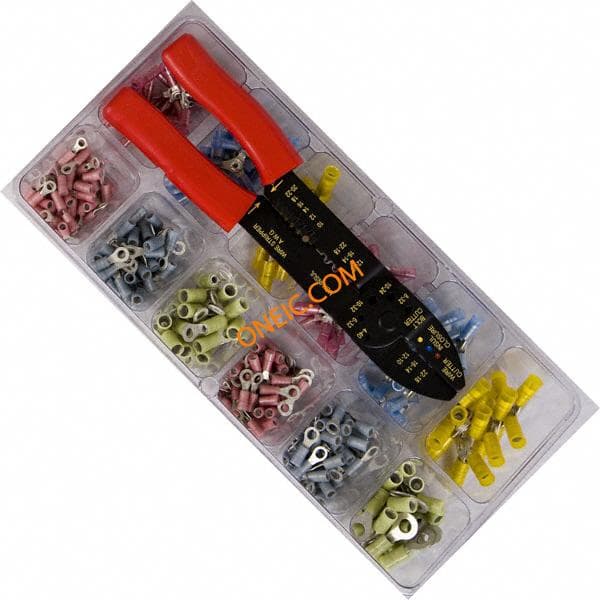

76650-0154
Molex Connector Corporation
KIT RING SPLICE SINGLE 34 K Terminals RING SPLICE KIT 3 4 SINGLE Solderless Terminal Kit Kit Description:Nylon Insulated Ring 3 and 4 Way Ring Splice and # 5-6, # 8, # 10, 1/4" Stud Size Ring Terminal with Universal Crimp ToolKit Category:Solderless TerminalsSolution:Maintenance, Repair and OperationPackaging:Clamshell: 12.75" by 6"Num. Pieces:301 SOLDERLESS TERMINAL KIT W/ CRIMP TOOL

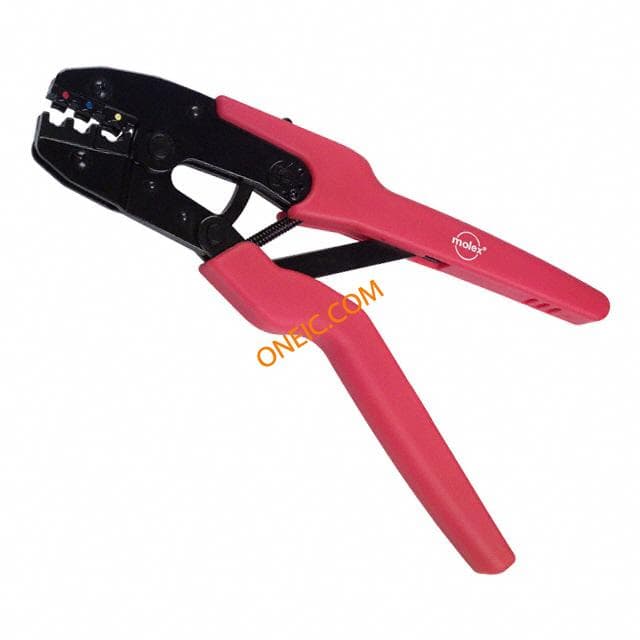

0640160036
