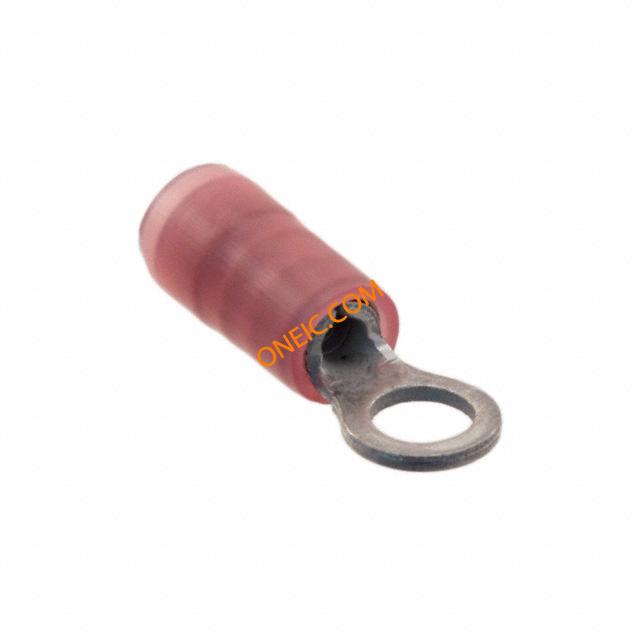

点击放大查看
0190730009
| 制造商 | Molex, LLC |
| 描述 | Ring Tongue Terminal 18-22AWG 18mm 5.7mm Electro-Tin Loose Piece CONN RING TERM #6 18-22AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Red | 深度 | 5.7 |
| 镀层 | Electro-Tin | 包装方式 | Loose Piece |
| 绝缘类型 | Insulated | 导线线规 | 18-22 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 3.5 mm |
| 端子类型 | Circular | 接触镀层 | Tin |
| 触头材料 | Copper | 总长度 | 0.710" (18.03mm) |
| 绝缘直径 | 0.140" (3.56mm) | 绝缘材料 - 类型 | Nylon |
| 外缘宽度 | 0.230" (5.84mm) | 绝缘材料 - 材质 | Polyamide (PA), Nylon |
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Serrated Termination |
