点击放大查看

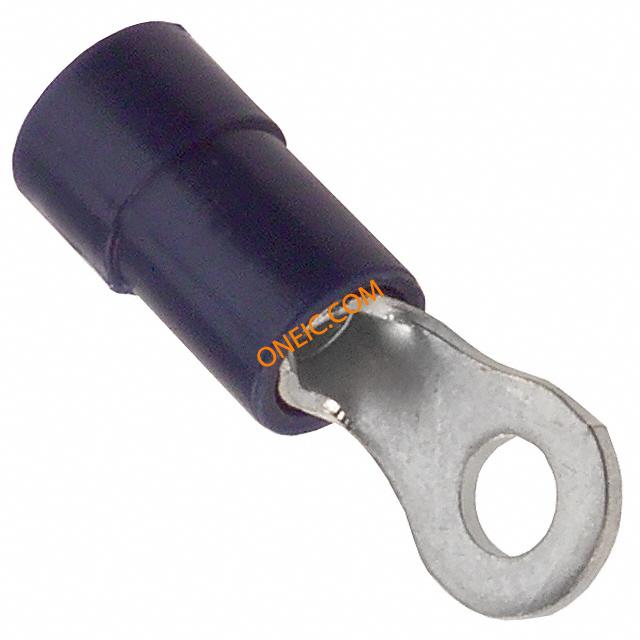

0190700067
| 制造商 | Molex, LLC |
| 描述 | Ring Tongue Terminal 14-16AWG 19.94mm 6.6mm Electro-Tin Loose Piece CONN RING TERM #4 14-16AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Blue | 深度 | 6.6 |
| 镀层 | Electro-Tin | 包装方式 | Loose Piece |
| 绝缘类型 | Insulated | 导线线规 | 14-16 AWG |
| 端接方式 | Crimp | 基体材料 | Copper |
| 安装类型 | Free Hanging (In-Line) | 螺柱/焊片尺寸 | 4 Stud |
| 端子类型 | Circular | 接触镀层 | Tin |
| 触头材料 | Copper | 总长度 | 0.785" (19.94mm) |
| 绝缘直径 | 0.175" (4.45mm) | 绝缘材料 - 类型 | Polyvinyl Chloride |
| 外缘宽度 | 0.260" (6.60mm) | 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) |
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Serrated Termination |
文档与媒体
PDF 文档
