点击放大查看

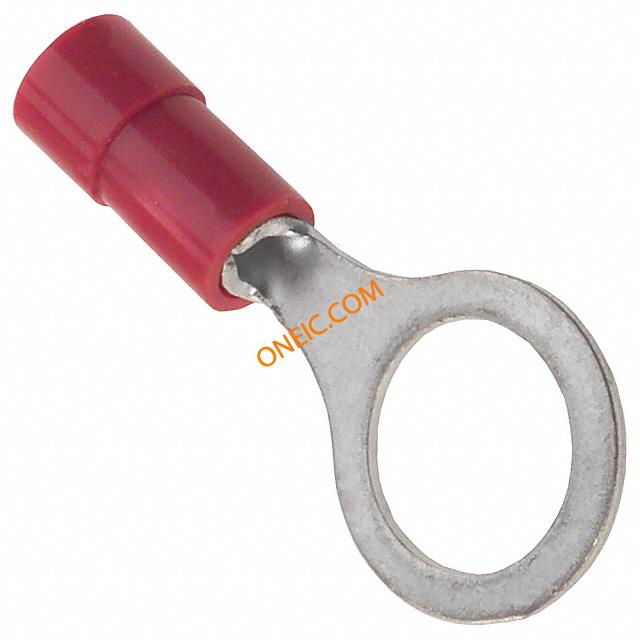

0190700026
| 制造商 | Molex, LLC |
| 描述 | Ring Tongue Terminal 18-22AWG 26.9mm 12.1mm Tin Loose Piece CONN RING TERM 5/16 18-22AWG |
| 分类 |
对参数有疑问？问 AI 助手
商业参数
| 标准包装数量 | 100 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Red | 深度 | 12.1 |
| 镀层 | Tin | 包装方式 | Loose Piece |
| 厚度 | 0.028" (0.71mm) | 绝缘类型 | Insulated |
| 导线线规 | 18-22 AWG | 端接方式 | Crimp |
| 基体材料 | Copper | 安装类型 | Free Hanging (In-Line) |
| 螺柱/焊片尺寸 | 5/16 Stud | 端子类型 | Circular |
| 接触镀层 | Tin | 触头材料 | Copper |
| 总长度 | 1.060" (26.92mm) | 绝缘直径 | 0.145" (3.68mm) |
| 绝缘材料 - 类型 | Polyvinyl Chloride | 外缘宽度 | 0.477" (12.11mm) |
| 绝缘材料 - 材质 | Poly-Vinyl Chloride (PVC) | ||
产品信息
| 类型 | Ring Tongue Terminal | 产品特性 | Serrated Termination |
文档与媒体
PDF 文档
