点击放大查看

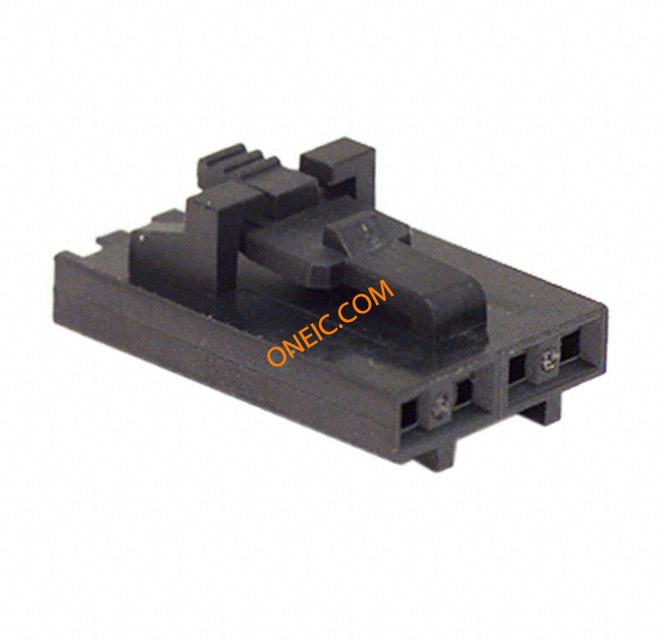

0050579404

制造商	Molex, LLC
描述	Conn Housing RCP 4 POS 2.54mm Crimp ST Panel Mount Bag Conn Housing F 4 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING 4POS .100 W/LATCH
分类	连接器解决方案重载连接器重载连接器

对参数有疑问？问 AI 助手

商业参数

交货时间	22 Days	子类别	Connector Discrete Wire Housing
标准包装数量	Bulk

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

最小输入电压	250V	最小供电电压	250V
连接器类型 - 电压输入	Crimp

机械参数

颜色	Black	深度	15.24 mm
间距	2.54 mm	高度	6.58 mm
包装方式	Bag	触点形式	Female Socket
触头类型	Female Socket	外壳颜色	Black
安装类型	Straight	连接器类型	Receptacle
紧固类型	Latch Lock	排数	1
壳体材料	Polyester	总长度	10.13 mm
触点数	4	接触件端接	Crimp
位数	4

产品信息

备注	Contacts Not Provided	类型	Housing
连接器性别	RCP	系列	C-Grid® SL™ 70066
行业别名	50-57-9404, 50579404	输出配置	Free Hanging (In-Line)

环境参数

工作温度

-40C to 105C

文档与媒体

PDF 文档

0050579404_CRIMP_HOUSINGS.pdf

PDF 文档

50-57-9404

PDF 文档

Single Row (SL) Prod Spec
