点击放大查看

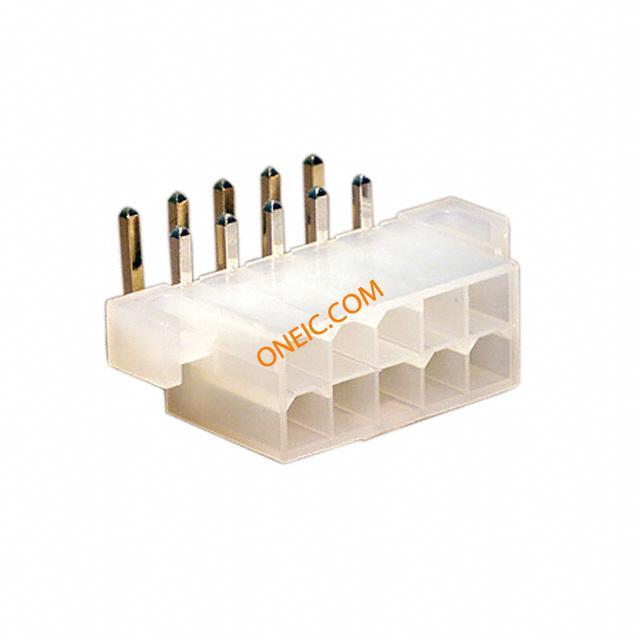

0039291108
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 10 POS 4.2mm Solder RA Thru-Hole Bag Conn Power HDR 10 POS 4.2mm Solder RA Thru-Hole 10 Terminal 1 Port Bag CONN HEADER 10POS 4.2MM R/A TIN |
| 分类 |
商业参数
| 交货时间 | 29 Days | 子类别 | Connector Power |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 13/Contact | 最小输入电压 | 600V |
机械参数
| 颜色 | Natural | 深度 | 19.4 |
| 间距 | 4.2 mm | 高度 | 11.4 |
| 包装方式 | Bag | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Tin Over Copper | 紧固类型 | Locking Ramp |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon 6/6 | 总长度 | 32.2 |
| 触点数 | 10 | 位数 | 10 |
| 接触镀层厚度 | 200µin (5.08µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 端口数 | 1 | 行业别名 | 39-29-1108, 39291108 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | 105 | ||
