点击放大查看

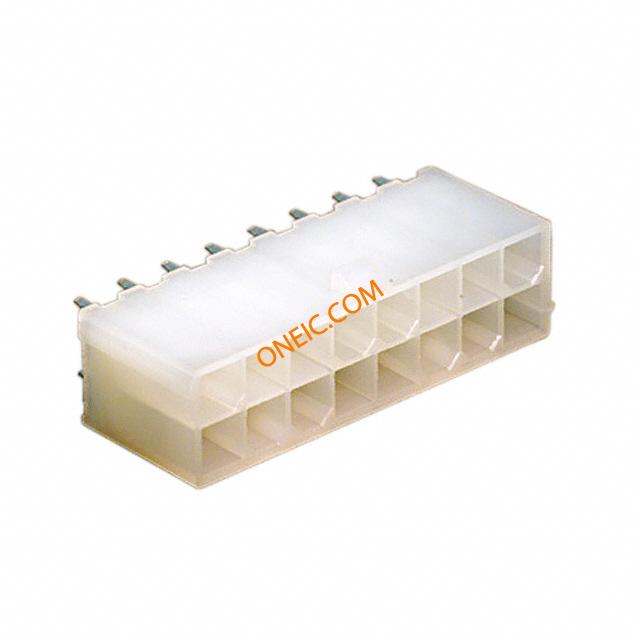

0039281163
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 16 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER 16POS 4.2MM VERT TIN |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 6/Contact A |
| 最小输入电压 | 600VDC|600VAC | 最小供电电压 | 600VDC/600VAC |
机械参数
| 颜色 | Natural | 深度 | 11 mm |
| 间距 | 4.2 mm | 高度 | 12.8 mm |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Bright Tin Over Copper |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon 66 | 总长度 | 35.6 mm |
| 触点数 | 16 | 位数 | 16 |
| 接触镀层厚度 | 35µin (0.90µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 39-28-1163, 39281163 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
