点击放大查看

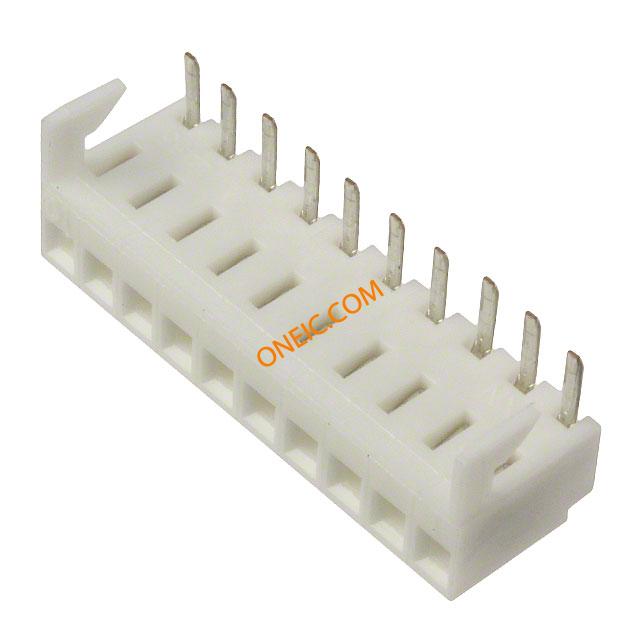

0038001340

制造商	Molex, LLC
描述	Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tray RCPT .100 RT ANG 10CKT TIN
分类	连接器解决方案板对板连接器板对板连接器

对参数有疑问？问 AI 助手

商业参数

标准包装数量

1,944

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	20 mohm	最大额定电流	2.5/Contact A
最小输入电压	250V	最小供电电压	250V

机械参数

颜色	White	深度	7.87 mm
间距	0.100" (2.54mm)	高度	4.7 mm
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	外壳颜色	White
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Tin	安装样式	Through Hole
排数	1	触头材料	Phosphor Bronze
壳体材料	Nylon	总长度	25.3 mm
触点数	10	位数	10
接触镀层厚度	100µin (2.54µm)

产品信息

类型	Socket Strip	连接器性别	RCP
加载位置数	All

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

相关型号

0022288101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

¥2.8519

详情

0022052101

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bulk Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A TIN

¥3.6482

详情

0022284103

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD

¥3.1124

详情

暂无图片

22-28-8105

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD Headers & Wire Housings KK 100 Hdr Assy RA B Bkwy 10 Ckt 30 SGold

¥2.1787

详情

22-28-4106

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings 2.54MM HDR VT 10P 240/125 30AU

¥2.4610

详情

22-28-4102

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT TIN Headers & Wire Housings 2.54MM HDR VT 10P 295/120 SN

¥1.2648

详情

22-28-4105

molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 10POS .100 VERT GOLD Headers & Wire Housings HDR VT 1X10P .1 295/120 15AU

¥1.4824

详情

0022288103

Molex

Conn Unshrouded Header HDR 10 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 10POS .100 R/A GOLD

¥3.0770

详情

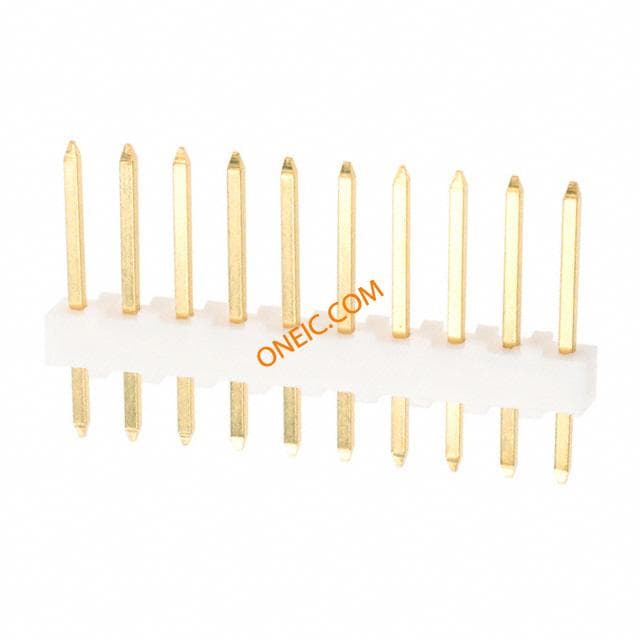

0022102101
