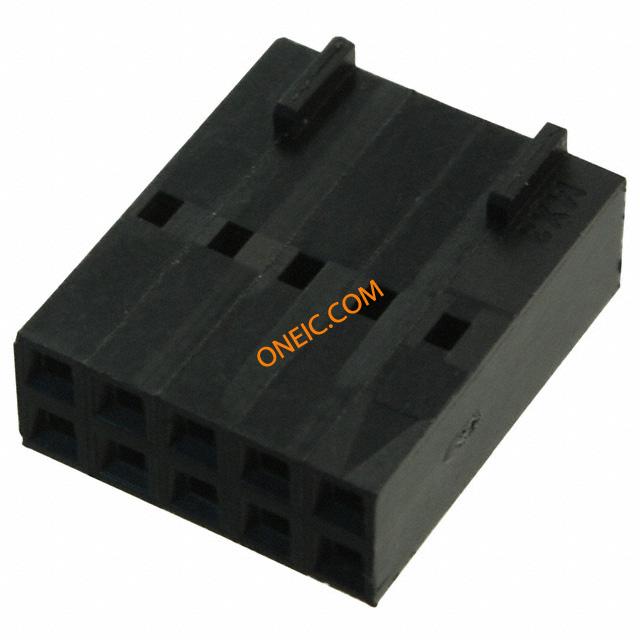

0022552103
| 制造商 | Molex, LLC |
| 描述 | Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Mount Bag CONN HOUSING FEMALE 10POS DUAL Conn Housing RCP 10 POS 2.54mm Crimp ST Cable Moun |
| 分类 |
商业参数
| 交货时间 | 29 Days | 子类别 | Connector Discrete Wire Housing |
| 标准包装数量 | 500 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
机械参数
| 颜色 | Black | 深度 | 15.24 mm |
| 间距 | 0.100" (2.54mm) | 包装方式 | Bag |
| 排间距 | 0.100" (2.54mm) | 触头类型 | Female Socket |
| 外壳颜色 | Black | 安装类型 | Straight |
| 连接器类型 | Receptacle | 排数 | 2 |
| 壳体材料 | Polyester | 总长度 | 12.67 mm |
| 触点数 | 10 | 接触件端接 | Crimp |
| 位数 | 10 | ||
产品信息
| 备注 | Contacts Not Provided | 类型 | Housing |
| 连接器性别 | RCP | 行业别名 | 22-55-2103, 22552103 |
环境参数
| 工作温度 | -40C to 105C | ||
