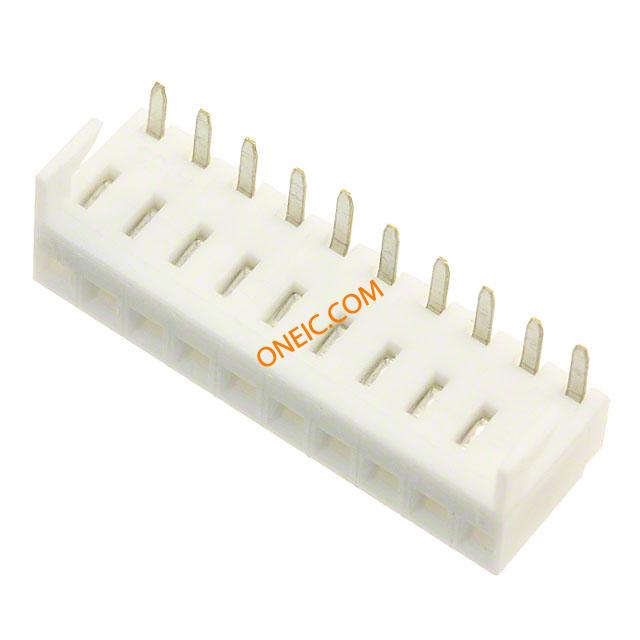

点击放大查看

0022152106

制造商	Molex, LLC
描述	Conn Socket Strip RCP 10 POS 2.54mm Solder RA Thru-Hole Tray CONN RECEPT 10POS .100 R/A PCB
分类	连接器解决方案板对板连接器板对板连接器

商业参数

交货时间	33 Days	子类别	Connector Headers and PCB Receptacles
标准包装数量	1

合规参数

RoHS

Lead free / RoHS Compliant

欧盟RoHS

Compliant

电气参数

接触电阻	20 mohm	最大额定电流	2.5/Contact A
最小输入电压	250V	最小供电电压	250V

机械参数

颜色	White	深度	7.9 mm
间距	0.100" (2.54mm)	高度	4.7 mm
包装方式	Tray	端接方式	Solder
触头类型	Female Socket	外壳颜色	White
安装类型	Through Hole	连接器类型	Receptacle
接触镀层	Tin	安装样式	Through Hole
排数	1	触头材料	Brass
壳体材料	Nylon	总长度	25.3 mm
触点数	10	位数	10
接触镀层厚度	100µin (2.54µm)

产品信息

类型	Socket Strip	连接器性别	RCP
行业别名	22-15-2106, 22152106	加载位置数	All

环境参数

工作温度

0C to 75C

文档与媒体

PDF 文档

Resin Color 01/Jan/2002

PDF 文档

0022152106_PCB_RECEPTACLES.pdf

PDF 文档

22-15-2106
