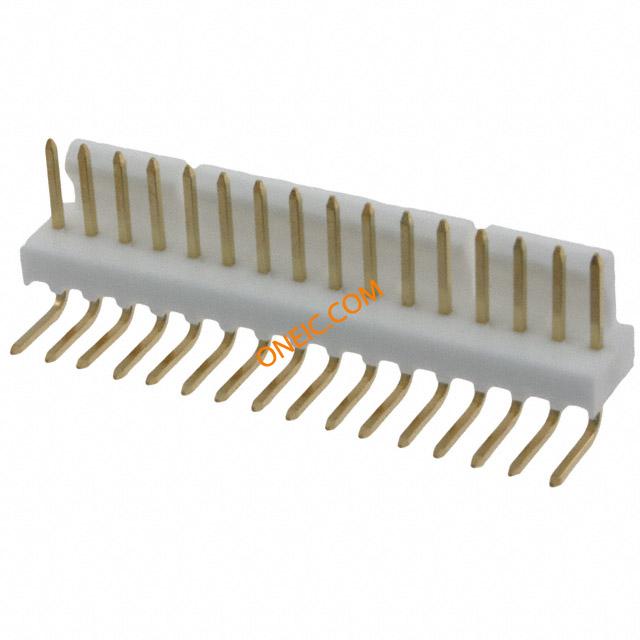

0022122164
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 16 POS 2.54mm Solder RA Thru-Hole Bag CONN HEADER 16POS .100 R/A GOLD |
| 分类 |
商业参数
| 交货时间 | 29 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | 250 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 4/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | White | 深度 | 12.83 |
| 间距 | 0.100" (2.54mm) | 高度 | 6.35 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 紧固类型 | Friction Lock |
| 排数 | 1 | 触头材料 | Brass |
| 壳体材料 | Nylon | 总长度 | 40.64 |
| 触点数 | 16 | 位数 | 16 |
| 接触长度 - 配合 | 0.264" (6.70mm) | 接触镀层厚度 | 20µin (0.51µm) |
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 行业别名 | 22-12-2164, 22122164 | 加载位置数 | All |
环境参数
| 防护等级 | - | 工作温度 | - |
