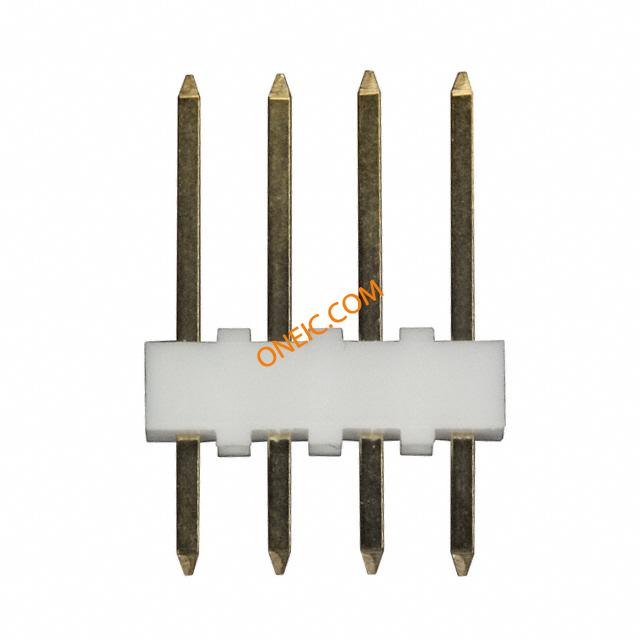

点击放大查看
0022102041
| 制造商 | Molex, LLC |
| 描述 | Conn Unshrouded Header HDR 4 POS 2.54mm Solder ST Thru-Hole Bag CONN HEADER 4POS .100 VERT GOLD |
商业参数
| 标准包装数量 | 2,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 | 最大额定电流 | 4/Contact |
| 最小输入电压 | 250V | ||
机械参数
| 颜色 | White | 深度 | 2.34 |
| 间距 | 0.100" (2.54mm) | 高度 | 10.79 |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | White |
| 安装类型 | Through Hole | 连接器类型 | Header, Unshrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon |
| 总长度 | 9.91 | 触点数 | 4 |
| 位数 | 4 | 接触长度 - 配合 | 0.295" (7.49mm) |
| 接触镀层厚度 | 20µin (0.51µm) | ||
产品信息
| 类型 | Unshrouded Header | 连接器性别 | HDR |
| 加载位置数 | All | ||
