0022035035
| 制造商 | Molex, LLC |
| 描述 | Conn Shrouded Header HDR 3 POS 2.5mm Solder ST Thru-Hole Bag CONN HEADER 3POS 2.5MM VERT TIN |
| 分类 |
商业参数
| 交货时间 | 57 Days | 子类别 | Connector Headers and PCB Receptacles |
| 标准包装数量 | Bulk | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 20 mohm | 最大额定电流 | 3/Contact A |
| 最小输入电压 | 250V | 最小供电电压 | 250V |
机械参数
| 深度 | 4.9 mm | 间距 | 2.5 mm |
| 高度 | 5.9 mm | 包装方式 | Bag |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 外壳颜色 | Natural | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Copper |
| 安装样式 | Through Hole | 排数 | 1 |
| 触头材料 | Brass | 壳体材料 | Nylon 6/6 |
| 总长度 | 9.9 mm | 触点数 | 3 |
| 位数 | 3 | 接触长度 - 配合 | 0.138" (3.50mm) |
产品信息
| 类型 | Shrouded Header | 连接器性别 | HDR |
| 行业别名 | 22-03-5035, 22035035 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | ||
文档与媒体
相关型号
0050375033
molex
Conn Housing RCP 3 POS 2.5mm Crimp ST Bag CONN HOUSING 3POS 2.5MM SHROUD

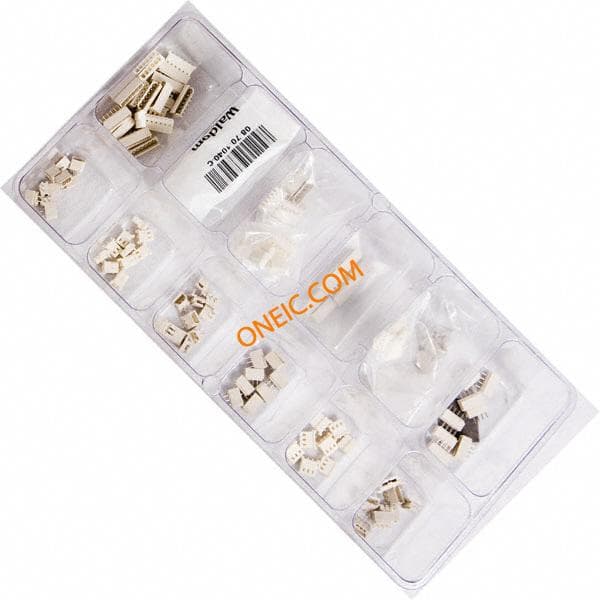

76650-0167
