点击放大查看

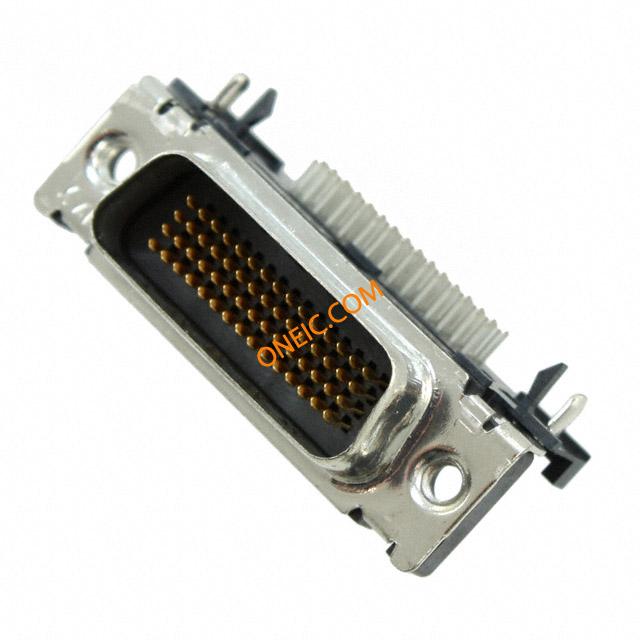

0015922250
| 制造商 | |
| 描述 | Conn D-Subminiature PIN 60 POS 1.27mm Solder RA Thru-Hole 60 Terminal 1 Port Tube CONN PLUG 60POS .050 R/A SHIELD |
商业参数
| 交货时间 | 50 Days | 子类别 | Connector D-Subminiature |
| 标准包装数量 | 14 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 额定电压 | 40V | 最大额定电流 | 1A |
| 最小输入电压 | 40V | ||
机械参数
| 颜色 | Black | 深度 | 18.8 |
| 间距 | 1.27 | 高度 | 13.06 |
| 包装方式 | Tube | 端接方式 | Solder |
| 触头类型 | Signal | 安装类型 | Right Angle |
| 连接器类型 | Plug, Male Pins | 接触镀层 | Gold Over Nickel |
| 法兰特征 | Housing/Shell (M3) | 排数 | 4 |
| 连接器样式 | D-Type, Board to Board, Matrix | 触头材料 | Phosphor Bronze |
| 壳体材料 | Liquid Crystal Polymer | 总长度 | 39.14 |
| 第一触头极性 | PIN | 触点数 | 60 |
| 位数 | 60 | 外壳材料及表面处理 | Steel, Tin Plated |
| 接触镀层厚度 | 30µin (0.76µm) | 外壳尺寸，连接器布局 | 0.050 Pitch x 0.050 Row to Row |
产品信息
| 类型 | D-Subminiature | 产品特性 | Board Lock, Grounding Indents, Shielded |
| 端口数 | 1 | 行业别名 | 15-92-2250, 15922250 |
环境参数
| 工作温度 | -20°C ~ 80°C | ||
