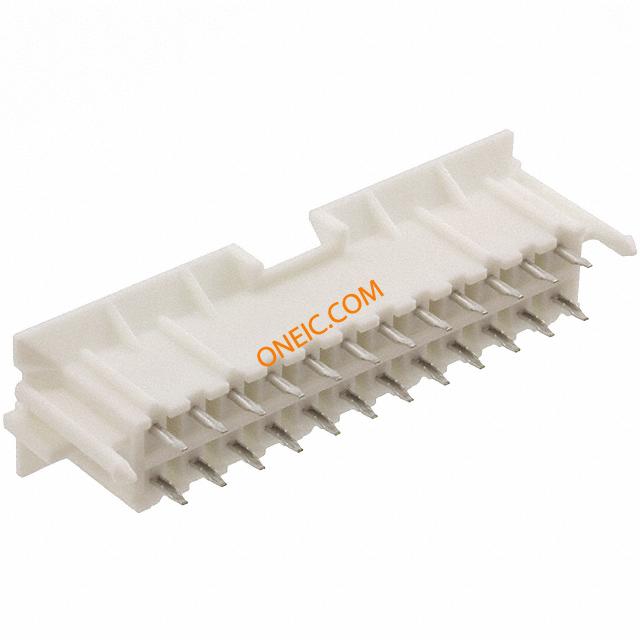

0015286242
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 24 POS 4.2mm Solder ST Thru-Hole 24 Terminal 1 Port Tray CONN HEADER DL 24POS VERT GOLD |
| 分类 |
商业参数
| 交货时间 | 36 Days | 子类别 | Connector Power |
| 标准包装数量 | 200 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 接触电阻 | 10 mohm | 最大额定电流 | 6/Contact A |
| 最小输入电压 | 600VAC | 最小供电电压 | 600VAC |
机械参数
| 颜色 | Natural | 深度 | 15 mm |
| 间距 | 0.165" (4.20mm) | 高度 | 14.1 mm |
| 直径 | Not Required mm | 包装方式 | Tray |
| 排间距 | 0.165" (4.20mm) | 端接方式 | Solder |
| 触头类型 | Male Pin | 外壳颜色 | Natural/White |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 安装样式 | Through Hole |
| 排数 | 2 | 触头材料 | Brass |
| 壳体材料 | Nylon 6/6 | 总长度 | 59.4 mm |
| 触点数 | 24 | 位数 | 24 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 已删除 | Compliant | 产品特性 | Board Lock |
| 端口数 | 1 | 行业别名 | 15-28-6242, 15286242 |
| 加载位置数 | All | ||
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
