点击放大查看

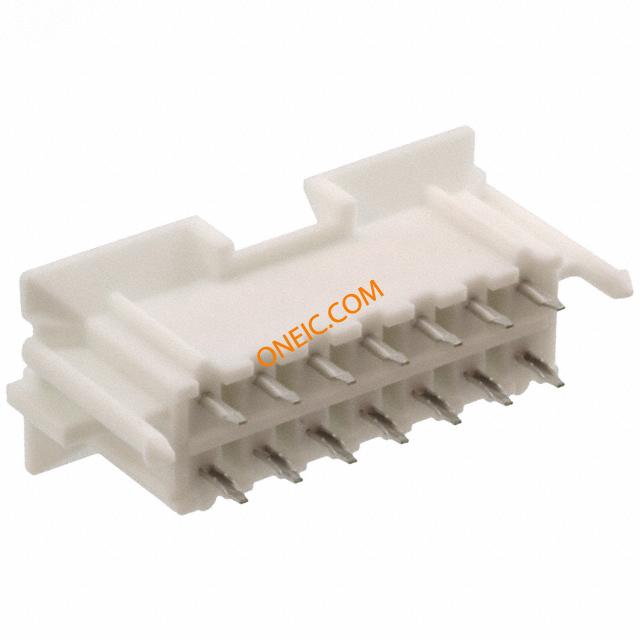

0015286142
| 制造商 | Molex, LLC |
| 描述 | Conn Wire to Board HDR 14 POS 4.2mm Solder ST Thru-Hole Tray CONN HEADER DL 14POS VERT GOLD |
| 分类 |
商业参数
| 交货时间 | 58 Days | 子类别 | Connector Power |
| 标准包装数量 | Trays | ||
合规参数
| RoHS | Lead free / RoHS Compliant | ||
机械参数
| 颜色 | Natural | 间距 | 4.2 mm |
| 包装方式 | Tray | 排间距 | 0.165" (4.20mm) |
| 端接方式 | Solder | 触头类型 | Male Pin |
| 安装类型 | Through Hole | 连接器类型 | Header, Shrouded |
| 接触镀层 | Gold Over Nickel | 排数 | 2 |
| 触点数 | 14 | 位数 | 14 |
| 接触镀层厚度 | 30µin (0.76µm) | ||
产品信息
| 类型 | Wire to Board | 连接器性别 | HDR |
| 产品特性 | Board Lock | 行业别名 | 15-28-6142, 15286142 |
| 加载位置数 | All | ||
