点击放大查看

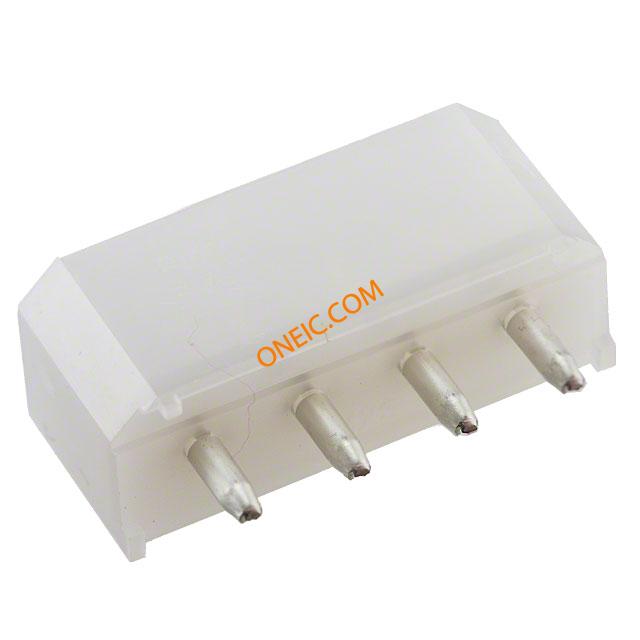

0015244449
| 制造商 | Molex, LLC |
| 描述 | Conn Power HDR 4 POS 5.08mm Solder ST Thru-Hole 4 Terminal 1 Port Bag CONN HEADER 4POS .200 VERT |
| 分类 |
商业参数
| 标准包装数量 | 4,000 | ||
合规参数
| RoHS | Lead free / RoHS Compliant | 欧盟RoHS | Compliant |
电气参数
| 最大额定电流 | 10/Contact A | 最小输入电压 | 250V |
| 最小供电电压 | 250V | ||
机械参数
| 颜色 | Beige | 深度 | 8.28 mm |
| 间距 | 0.200" (5.08mm) | 高度 | 10.16 mm |
| 包装方式 | Bag | 端接方式 | Solder |
| 触头类型 | Male Pin | 安装类型 | Through Hole |
| 连接器类型 | Header, Shrouded | 接触镀层 | Tin Over Nickel |
| 紧固类型 | Locking Ramp | 安装样式 | Through Hole |
| 排数 | 1 | 触头材料 | Phosphor Bronze |
| 壳体材料 | Nylon 6/6 | 总长度 | 23.26 mm |
| 触点数 | 4 | 位数 | 4 |
| 接触长度 - 配合 | 0.171" (4.34mm) | 接触镀层厚度 | 100µin (2.54µm) |
产品信息
| 类型 | Power | 连接器性别 | HDR |
| 端口数 | 1 | 加载位置数 | All |
环境参数
| 工作温度 | -40C to 105C | 结工作温度 | 105C |
